OMRON TM12
Achieve reliable assembly, packaging, and inspection with the TM12 collaborative robot. Featuring a 1300 mm reach and 12 kg payload, TM12 delivers precise automation for automotive, electronics, and consumer goods production. Integrated vision and graphical programming enable quick deployment and error-free changeovers, while flexible mounting supports diverse factory layouts.

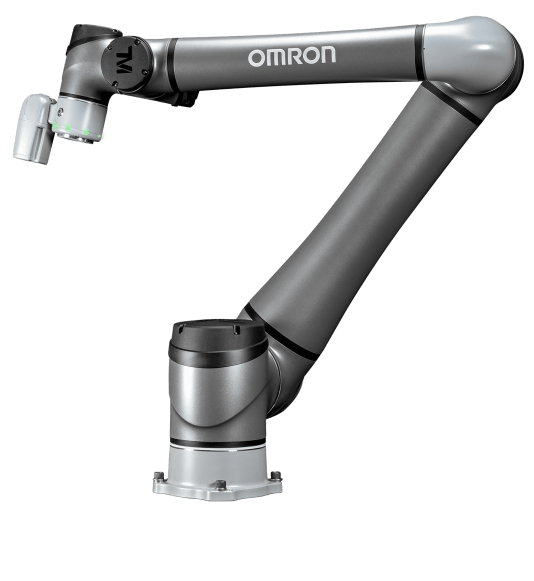

OMRON TM12
|
Maximum payload |
12 kg |
|
Maximum reach |
1300 mm |
|
Repeatability |
±0.1 mm |
|
Average speed |
1.3 m/s |
|
IP and cleanroom class |
IP54, ISO Class 3 |
|
Programming environment |
TMflow |

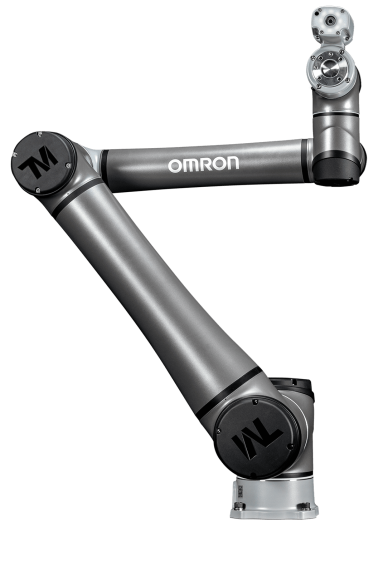

TM12X
|
Maximum payload |
12 kg |
|
Maximum reach |
1300 mm |
|
Repeatability |
±0.1 mm |
|
Average speed |
1.3 m/s |
|
IP and cleanroom class |
IP54, ISO Class 3 |
|
Programming environment |
TMflow |

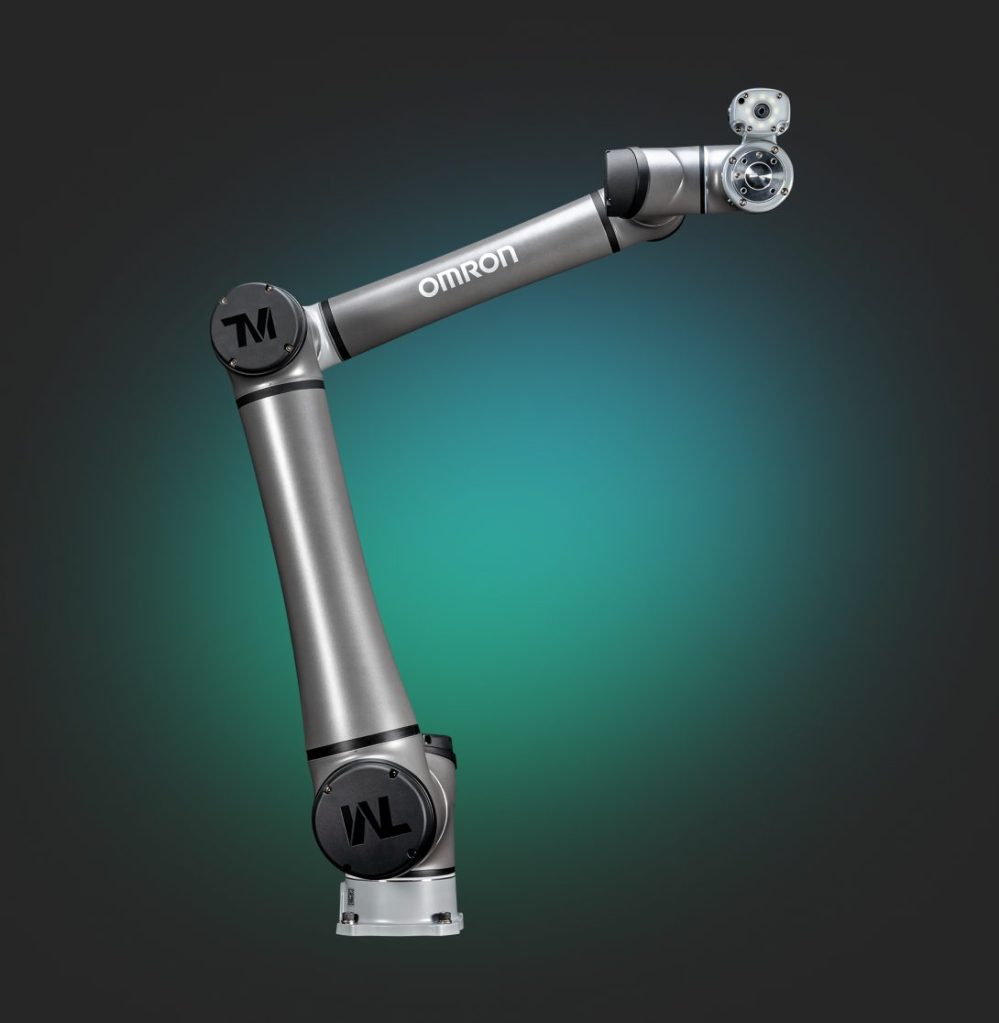

Gallery
FEATURES
OMRON TM12—compact, durable, and versatile
Food-grade grease
Prevents oil leakage and contamination, ensuring safe operations in food-handling, packaging, and palletizing environments.
Easy setup & hand guiding
Simplify deployment with hand guide mode and built-in buttons on the cobot arm, enabling quick task setup and position adjustments.
Graphical programming
Automate tasks effortlessly with TMFlow’s drag-and-drop interface, with no coding expertise required.
Built-in vision & landmark
Integrated vision enables object recognition and positioning, with landmarks enhancing navigation for quick redeployment without recalibration.
Robust and flexible
IP54-rated durability and ISO Class 3 cleanroom compatibility make the TM12 ideal for logistics, assembly, and medium-duty applications.
Enhanced safety
Advanced safety features ensure safe collaboration with human workers while meeting industry standards, including ISO 10218-1 and ISO 13849-1.
CASE STUDY

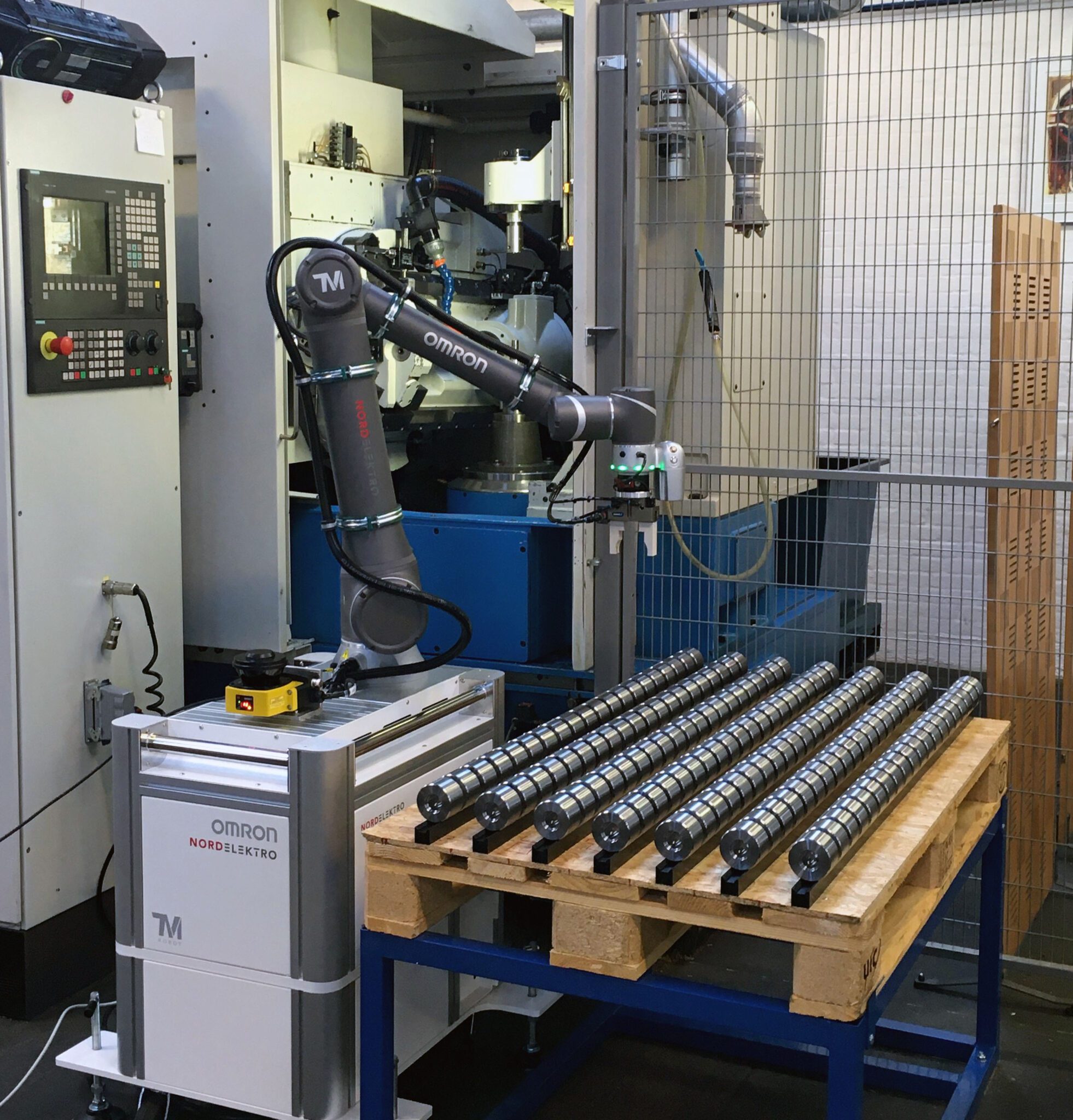

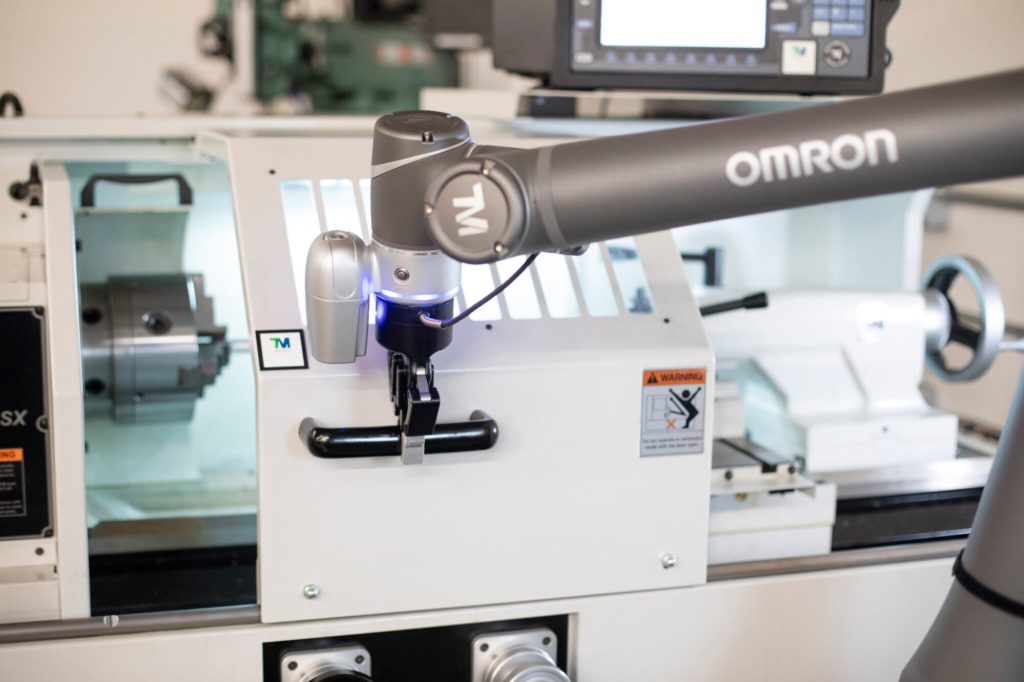

See how Fischer Gears automates 70% of CNC feeding with the OMRON TM12 Cobot
APPLICATIONS

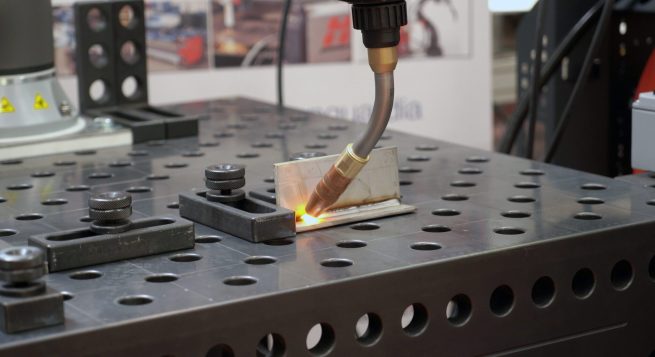

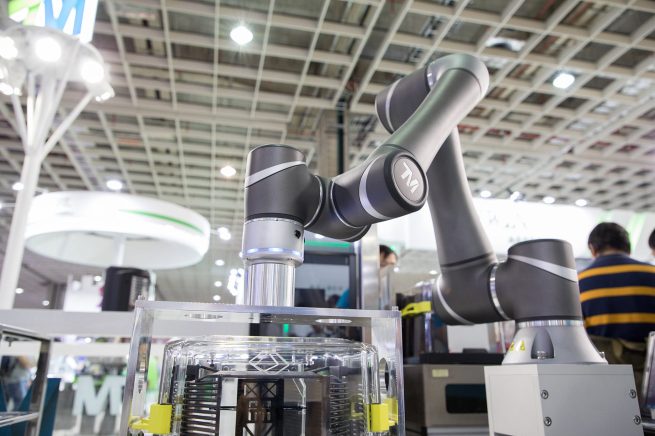

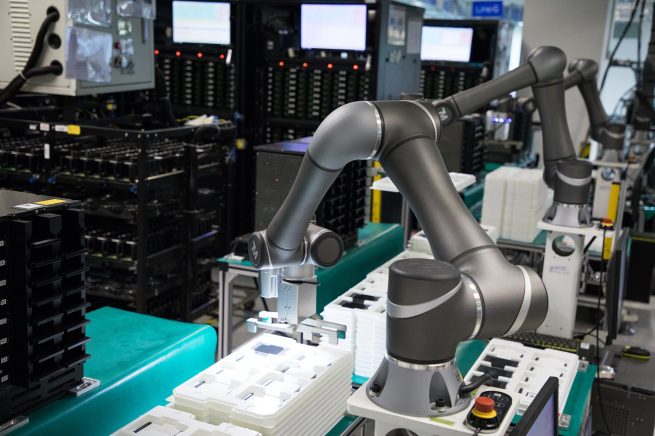

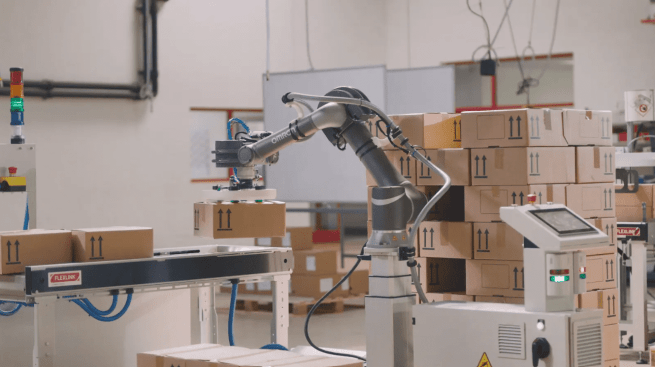

Built to handle your most demanding applications

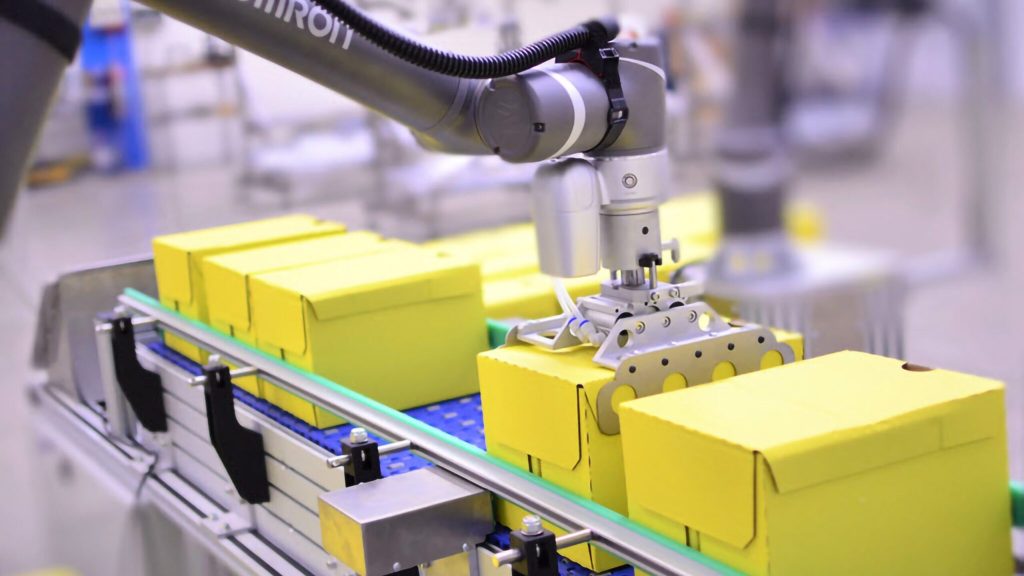

Discover how collaborative robots automate heavy assembly, inline measurement, and high-capacity packaging. Their flexibility enables redeployment across automotive, electronics, and industrial lines, boosting throughput and product quality.
See all applications
SOFTWARE

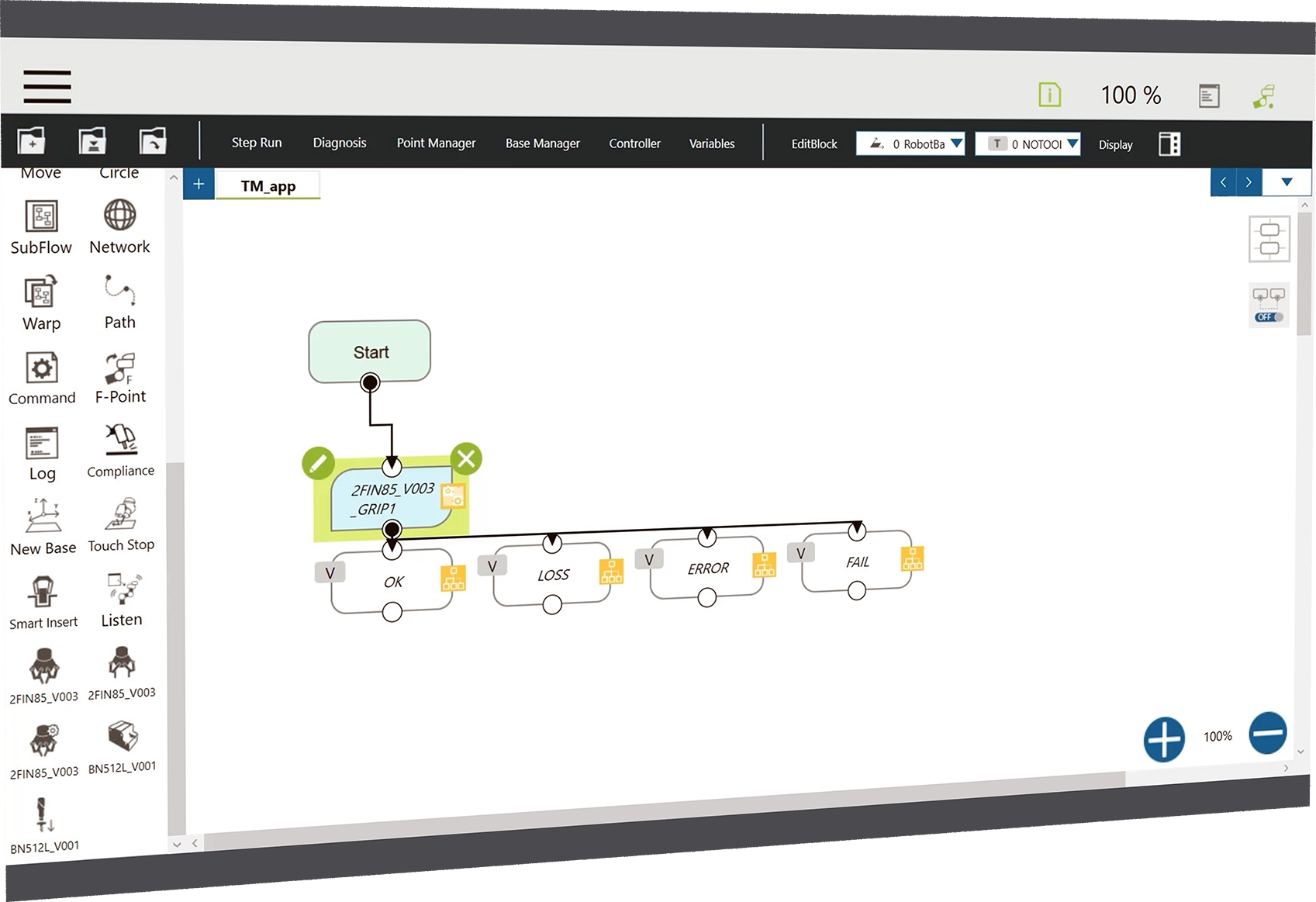

Optimize production with TMflow
TMflow’s intuitive interface streamlines programming for assembly, packaging, and inspection. Integrated vision calibration and customizable safety zones ensure quick adaptation to new tasks while maintaining compliance and operator safety.
Learn more
ACCESSORIES
Expand your cobot’s potential with accessories
Choose from robust grippers, advanced vision modules, and certified end-effectors for seamless integration. Accessories are designed for efficient installation and reliable operation in assembly, packaging, and inspection workflows.
Download brochure
Landmark
Positioning tool for cobot reference to the environment, included with most models for precise setup.
Teach pendant
Touchscreen teaching pendant for intuitive operation, compatible with TM Series cobots, featuring a 10.1-inch display.
Robot stand
Portable stand for moving cobots between stations, ensuring stability and adaptability in dynamic setups.
Mobile workstation (MWS)
Mounts cobot securely, stores control box, and allows easy movement between work cells, boosting flexibility.
Calibration kit
Toolkit for precise tool center point (TCP) teaching and manual workspace calibration, critical for accurate vision tasks.
Robot stick stand
Versatile mounting fixture for TM Series cobots, compatible with desktops, walls, and MWS for secure and flexible installation.
Polarizer light module
Reduces reflections from the robot’s light source on highly reflective surfaces. Compatible with HW 3.2 or above.
SSD with cable
128 GB solid-state drive with SATA cable, recommended for external camera image logging, ensuring smooth data handling.
Air filter
Replenish or replace the air filter in your cobot’s electric control box to maintain peak performance and extend its lifespan.
MANIPULATOR SOLUTION
Smarter production start with MoMas
Transform your operations with Mobile Manipulator applications that combine collaborative and mobile robots to automate complex transport and picking tasks, boosting efficiency and adaptability.
Learn more about MoMas
video
Automate your production line
Maximize productivity with Omron’s industrial automation solutions. Seamlessly program and synchronize robots, safety, and vision systems on one platform, with integrated simulation for easy deployment and efficient operations.
Motion
Servos ensure efficient line movement, reducing downtime and maintenance for smoother, more reliable operations.
Robotics
Industrial, mobile, and collaborative robots enhance productivity and easily adapt to a wide range of applications with precision.
Control
Control units integrate with your production line, maximizing productivity while saving space with built-in systems.
Vision
Cameras and sensors adapt to your environment, enabling smooth, accurate, and high-quality automated processes.
Safety
Safety sensors ensure seamless human-machine collaboration, reducing risks and enhancing workplace safety.
Start optimizing your production today
Have questions? Let’s chat.
RESOURCES
Your go-to resource hub
Keep your workflows efficient with the latest TMflow updates and documentation to ensure your collaborative robots operate at their best.
Get the latest resources
SERVICE
Global service and support network
OMRON Robotics provides worldwide support and training to keep your robot fleet running at peak efficiency, ensuring optimal uptime and performance.
