Parallel Robots
Achieve high-speed, precise pick-and-place with parallel robots—maximizing throughput and reliability.
Models
Models
01

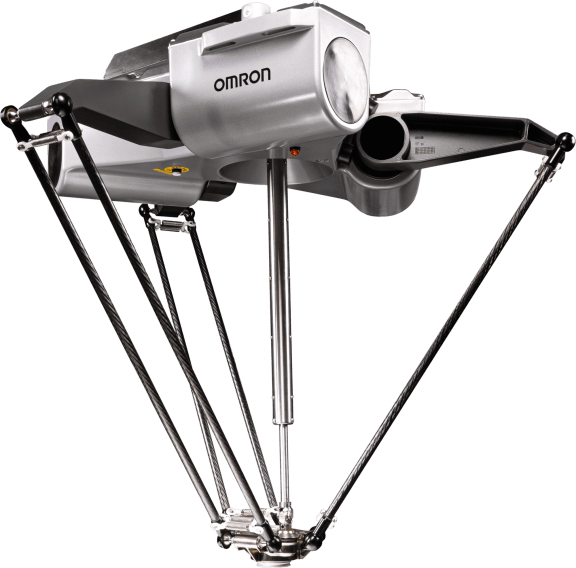

iX3
The iX3 parallel robot excels at high-speed pick-and-place operations, handling payloads up to 8 kg with a tracking speed of 1.4 m/s and a reach of 1130 mm. Its multi-picking capability and reduced vibrations ensure efficient, stable, and cost-effective performance.
Maximum working diameter |
1130 mm |
Maximum payload |
8 kg |
Cycle times (at 2 kg) |
0.32 s |
View product details
02

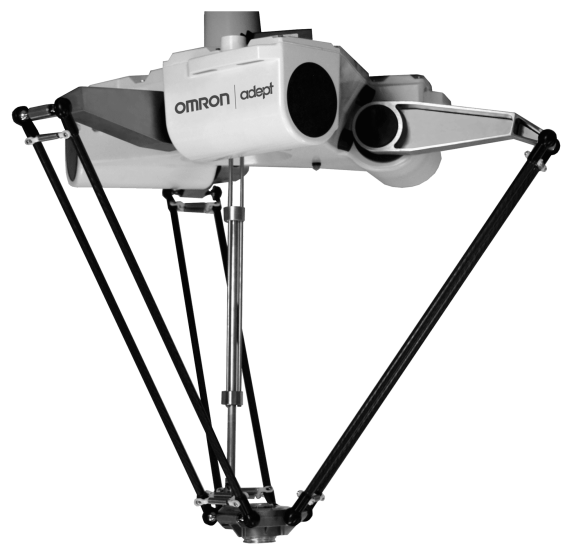

Hornet
The Hornet robot manages high-speed pick-and-place operations with 8 kg payloads, 1.4 m/s tracking speed, and a 1130 mm reach. Its multi-picking support and reduced vibrations ensure efficient, optimal performance for demanding tasks.
Maximum working diameter |
1130 mm |
Maximum payload |
8 kg |
Cycle times (at 2 kg) |
0.32 s |
View product details
03

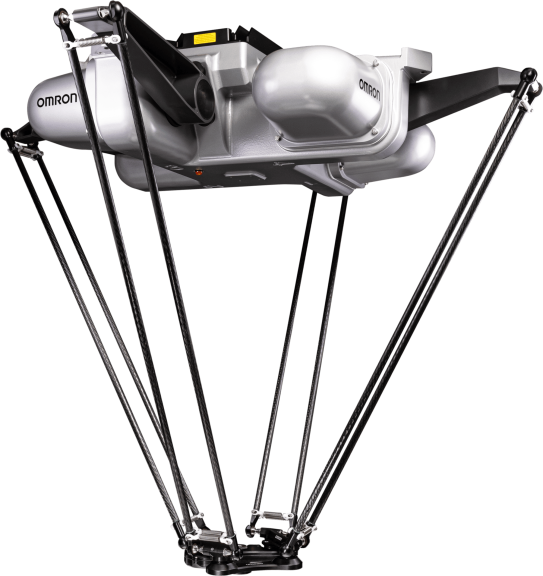

iX4
Featuring a patented 4-arm design, the iX4 robot handles payloads up to 15 kg with exceptional speed and precision. Its USDA-compliant performance ensures reliability and efficiency in high-demand, sanitary applications, such as food processing and pharmaceutical packaging.
Maximum working diameter |
1300 mm and 1600 mm |
Maximum payload |
15 kg |
Cycle times (at 2 kg) |
0.30-0.42 s |
View product details
04

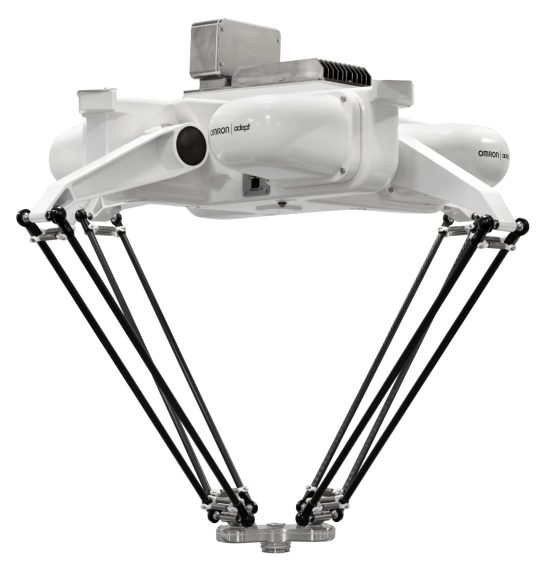

Quattro
With a patented 4-arm design, the Quattro robot handles up to 15 kg payloads with speed, precise multi-picking, and USDA-compliant performance—ensuring reliability and efficiency in high-demand, sanitary applications.
Maximum working diameter |
1300 mm and 1600 mm |
Maximum payload |
15 kg |
Cycle times (at 2 kg) |
0.30-0.42 s |
View product details
Comparison
Product
1130 mm
8 kg (3-axis)
3 kg (4-axis)
0.32-0.42 s
3-axis
4-axis
IP20
IP65
IP67
OMRON NJ501-R
(via EtherCAT®)
Inverted
Sysmac Studio
EtherCAT® via
OMRON NJ501-R
1130 mm
8 kg (3-axis)
3 kg (4-axis)
0.32-0.42 s
3-axis
4-axis
IP20
IP65
IP67
SmartController EX
NJ/NX/NY Series
Inverted
ACE Software
ePLC
EtherCAT®
Ethernet
1300 mm (iX4-650)
1600 mm (iX4-800)
15 kg (iX4-650)
10 kg (iX4-800)
0.30–0.61 s (iX4-650)
0.33–0.62 s (iX4-800)
4
IP20
IP65
IP67
OMRON NJ501-R
(via EtherCAT®)
Inverted
Sysmac Studio
EtherCAT® via
OMRON NJ501-R
1300 mm (Quattro 650)
1600 mm (Quattro 800)
15 kg (Quattro 650)
10 kg (Quattro 800)
0.30–0.61 s (Quattro 650)
0.33–0.62 s (Quattro 800)
4
IP65
IP66 for 650HS
SmartController EX
NJ/NX/NY Series
Inverted
ACE Software
ePLC
Ethernet
Max. working diameter
Max. payload
Cycle times (at 2 kg payload)
Number of axes
Protection class options
Robot controller options
Mounting options
Programming environment
Connectivity
|
|
||||
|---|---|---|---|---|
|
Max. working diameter |
1130 mm |
1130 mm |
1300 mm (iX4-650) |
1300 mm (Quattro 650) |
|
Max. payload |
8 kg (3-axis) |
8 kg (3-axis) |
15 kg (iX4-650) |
15 kg (Quattro 650) |
|
Cycle times (at 2 kg payload) |
0.32-0.42 s |
0.32-0.42 s |
0.30–0.61 s (iX4-650) |
0.30–0.61 s (Quattro 650) |
|
Number of axes |
3-axis |
3-axis |
4 |
4 |
|
Protection class options |
IP20 |
IP20 |
IP20 |
IP65 |
|
Robot controller options |
OMRON NJ501-R |
SmartController EX |
OMRON NJ501-R |
SmartController EX |
|
Mounting options |
Inverted |
Inverted |
Inverted |
Inverted |
|
Programming environment |
Sysmac Studio |
ACE Software |
Sysmac Studio |
ACE Software |
|
Connectivity |
EtherCAT® via |
EtherCAT® |
EtherCAT® via |
Ethernet |
