Product
AUTONOMOUS MOBILE ROBOT
OL Series

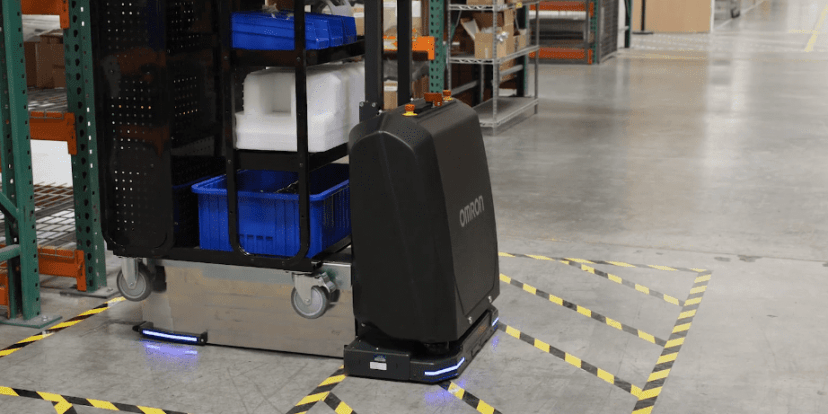

Move your cart runs into streamlined, reliable material flow with the OL Series.
Models
01

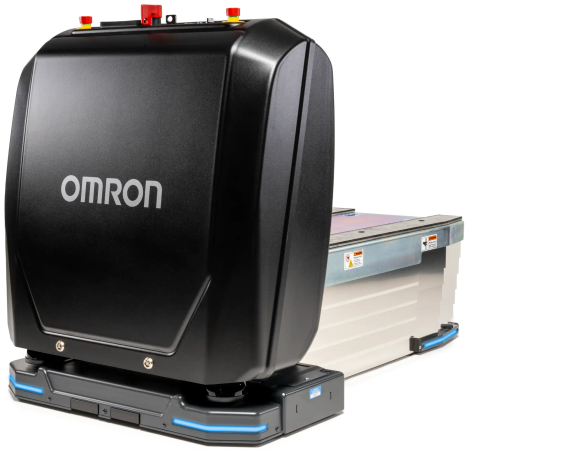

OL-450S
Compact cart transport for low-clearance workflows. The standard OL-450S automates movement of picking carts, roll cages, and other load carriers while keeping the robot’s profile low. This design supports reliable transport through narrow aisles, elevators, doorways, and other areas with limited overhead space, helping simplify deployment in space-constrained facilities.
Maximum payload |
450 kg |
Lift height |
108 – 308 mm |
Configuration |
No mast |
View product details
Optional Accessory
02
OL-450S with Mid Mast
Improved localization where vertical clearance is limited. The mid mast raises the scanner to improve navigation reliability while maintaining access through spaces with height restrictions. This configuration helps the robot operate more confidently in shared environments with people, equipment, and moving obstacles.
Maximum payload |
450 kg |
Lift height |
108 – 308 mm |
Configuration |
Mid mast, 1.2 m |
View product details
Optional Accessory
03

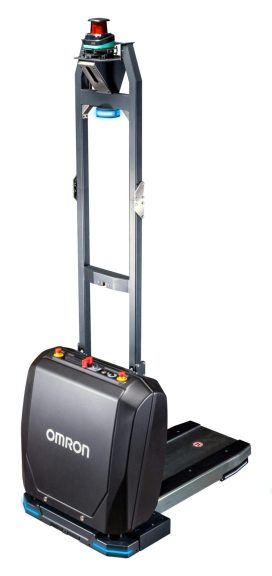

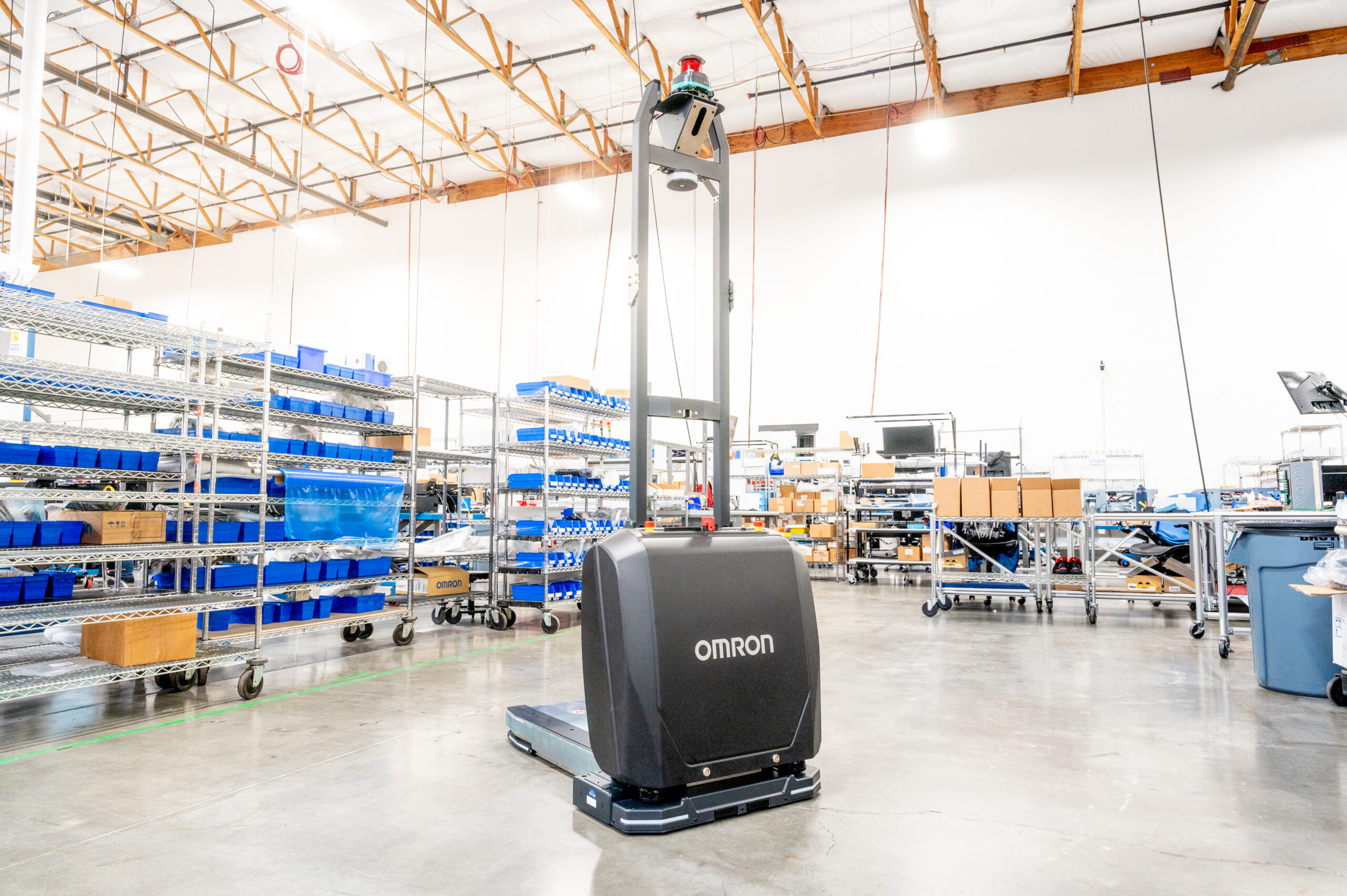

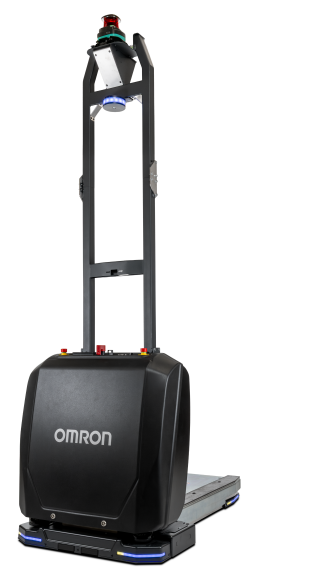

OL-450S with Full Mast
Maximum scanning height for complex operations. The full mast positions the scanner at the highest available point for stronger visibility in large or visually complex environments. This configuration supports stable, reliable navigation in busy facilities where overhead clearance is not a limiting factor.
Maximum payload |
450 kg |
Lift height |
108 – 308 mm |
Configuration |
Full mast, 1.6 m |
View product details
Compare our AMRs
Product
450 kg
1.2 m/s
Flat surfaces only
11 h (no payload) 7 h (full payload)
25 min (20% to 80% charge)
360° safety coverage 2 front safety scanners 29 safety scanner zone sets Advanced obstacle avoidance Emergency stops (2 total) Audible and visual indicators Rear bumper stop Safety approach light
IP20
–
EN ISO 12100 EN ISO 13849-1 EN IEC 60204-1 EN ISO 3691-4 (except clause 4.12) EN 61000-6-2 EN 61000-6-4 UN 38.3 UL 1564 EN 60335-2-29 EN 62311 EN 55011 IEEE 802.11 b/g
Battery: CE Stationary electronics and stationary coil: CE
No
MobilePlanner
60 kg (LD-60) 90 kg (LD-90)
1.8 m/s (LD-60) 1.35 m/s (LD-90)
≤ 60 kg: 4.8° (8.3%) (LD-60/90) > 60 kg: Level floor only (LD-60/90)
15 h (no payload) 12 h (full payload)
2 h 10 min (20% to 80% charge)
240° field of view Front safety scanning laser Emergency stops Advanced obstacle avoidance Rear sonar sensing Front bumper sensors Audible and visual indicators
IP20
ISO 5 / Class 100
EN ISO 12100 EN ISO 13849-1 EN 60204-1 EN ISO 3691-4 (with exceptions) ANSI B56.5 EN 61000-6-2 EN 61000-6-4 UL 3100 KN 61000-6-2 KN 61000-6-4 ANSI/CAN/UL/ULC 2271 UN 38.3 UL 1012 CSA C22.2 No. 107.2 IEEE 802.11 a/b/g
AMR: cULus Battery: cRUus Docking station: cULus
Yes
MobilePlanner
250 kg
1.2 m/s
1.7° / 3% incline
13 h (no payload) 10 h (full payload)
2 h 10 min (20% to 80% charge)
240° field of view Front safety scanning laser Low front laser Advanced obstacle avoidance Optional laser scanners Emergency stops (3 total) Rear TOF sensing Audible and visual indicators
IP20
ISO 5 / Class 100
EN ISO 12100 EN ISO 13849-1 EN 60204-1 EN ISO 3691-4 (with exceptions) EN 61000-6-2 EN 61000-6-4 UL 3100 KN 61000-6-2 KN 61000-6-4 ANSI/CAN/UL/ULC 2271 UN 38.3 UL 1012 CSA C22.2 No. 107.2 IEEE 802.11 a/b/g
AMR: cULus Battery: cRUus Docking station: cULus
Yes
MobilePlanner
650 kg (MD-650) 900 kg (MD-900)
2.2 m/s (MD-650) 1.8 m/s (MD-900)
5° / 8.75% incline
10 h (no payload) 8 h (full payload)
19.6 min (20% to 80% charge)
360° safety coverage Two safety laser scanners Low obstacle detection lasers Advanced obstacle avoidance Emergency stops (5 total) Audible and visual indicators Optional vertical laser scanners
IP22 IP10 for charging pads
ISO 4 / Class 10
EN ISO 12100 EN ISO 13849-1 EN 60204-1 EN ISO 10218-1 EN ISO 3691-4 EN 12895 EN 61326-3-1 EN 61326-1 ANSI/RIA R15.08 CAN/UL 3100 CAN/CSA-Z434 KS C 9610-6-2 KS C 9610-6-4 ANSI/CAN/UL/ULC 2271 UN 38.3 UL 1012 CAN/CSA C22.2.107.2 EN 61204-7 EN 62477-1 IEEE 802.11 a/b/g
AMR: cTUVus Battery: cTUVus, CE Power supply box: cTUVus Docking target: cTUVus
No
MobilePlanner
1500 kg
1.8 m/s
5° / 8.75% incline
12.5 h (no payload) 9 h (full payload)
24 min (20% to 80% charge)
360° safety coverage Two safety laser scanners Low obstacle detection lasers Advanced obstacle avoidance Safety laser scanner zone sets Emergency stops (5 total) Audible and visual indicators Dual-channel emergency stop Dual-channel safety outputs Dual-channel protective stop interface Optional vertical laser scanners
IP20
ISO 5 / Class 100
EN ISO 12100 EN ISO 13849-1 EN 60204-1 EN ISO 10218-1 EN ISO 3691-4 EN 12895 EN 61326-3-1 EN 61326-1 CAN/UL 3100 CAN/CSA-Z434 KS C 9610-6-2 KS C 9610-6-4 ANSI/CAN/UL/ULC 2271 UN 38.3 UL 1012 CAN/CSA C22.2.107.2 EN 61204-7 EN 62477-1 IEEE 802.11 a/b/g
AMR: cTUVus Battery: cURus, CE Power supply box: cTUVus Docking target: cTUVus
No
MobilePlanner
Maximum payload
Maximum speed
Maximum slope
Run time
Charging time
Safety features
IP rating
Cleanroom rating
Compliance
Certifications and markings
ESD option
Control interface
|
|
|||||
|---|---|---|---|---|---|
|
Maximum payload |
450 kg |
60 kg (LD-60) 90 kg (LD-90) |
250 kg |
650 kg (MD-650) 900 kg (MD-900) |
1500 kg |
|
Maximum speed |
1.2 m/s |
1.8 m/s (LD-60) 1.35 m/s (LD-90) |
1.2 m/s |
2.2 m/s (MD-650) 1.8 m/s (MD-900) |
1.8 m/s |
|
Maximum slope |
Flat surfaces only |
≤ 60 kg: 4.8° (8.3%) (LD-60/90) > 60 kg: Level floor only (LD-60/90) |
1.7° / 3% incline |
5° / 8.75% incline |
5° / 8.75% incline |
|
Run time |
11 h (no payload) 7 h (full payload) |
15 h (no payload) 12 h (full payload) |
13 h (no payload) 10 h (full payload) |
10 h (no payload) 8 h (full payload) |
12.5 h (no payload) 9 h (full payload) |
|
Charging time |
25 min (20% to 80% charge) |
2 h 10 min (20% to 80% charge) |
2 h 10 min (20% to 80% charge) |
19.6 min (20% to 80% charge) |
24 min (20% to 80% charge) |
|
Safety features |
360° safety coverage 2 front safety scanners 29 safety scanner zone sets Advanced obstacle avoidance Emergency stops (2 total) Audible and visual indicators Rear bumper stop Safety approach light |
240° field of view Front safety scanning laser Emergency stops Advanced obstacle avoidance Rear sonar sensing Front bumper sensors Audible and visual indicators |
240° field of view Front safety scanning laser Low front laser Advanced obstacle avoidance Optional laser scanners Emergency stops (3 total) Rear TOF sensing Audible and visual indicators |
360° safety coverage Two safety laser scanners Low obstacle detection lasers Advanced obstacle avoidance Emergency stops (5 total) Audible and visual indicators Optional vertical laser scanners |
360° safety coverage Two safety laser scanners Low obstacle detection lasers Advanced obstacle avoidance Safety laser scanner zone sets Emergency stops (5 total) Audible and visual indicators Dual-channel emergency stop Dual-channel safety outputs Dual-channel protective stop interface Optional vertical laser scanners |
|
IP rating |
IP20 |
IP20 |
IP20 |
IP22 IP10 for charging pads |
IP20 |
|
Cleanroom rating |
– |
ISO 5 / Class 100 |
ISO 5 / Class 100 |
ISO 4 / Class 10 |
ISO 5 / Class 100 |
|
Compliance |
EN ISO 12100 EN ISO 13849-1 EN IEC 60204-1 EN ISO 3691-4 (except clause 4.12) EN 61000-6-2 EN 61000-6-4 UN 38.3 UL 1564 EN 60335-2-29 EN 62311 EN 55011 IEEE 802.11 b/g |
EN ISO 12100 EN ISO 13849-1 EN 60204-1 EN ISO 3691-4 (with exceptions) ANSI B56.5 EN 61000-6-2 EN 61000-6-4 UL 3100 KN 61000-6-2 KN 61000-6-4 ANSI/CAN/UL/ULC 2271 UN 38.3 UL 1012 CSA C22.2 No. 107.2 IEEE 802.11 a/b/g |
EN ISO 12100 EN ISO 13849-1 EN 60204-1 EN ISO 3691-4 (with exceptions) EN 61000-6-2 EN 61000-6-4 UL 3100 KN 61000-6-2 KN 61000-6-4 ANSI/CAN/UL/ULC 2271 UN 38.3 UL 1012 CSA C22.2 No. 107.2 IEEE 802.11 a/b/g |
EN ISO 12100 EN ISO 13849-1 EN 60204-1 EN ISO 10218-1 EN ISO 3691-4 EN 12895 EN 61326-3-1 EN 61326-1 ANSI/RIA R15.08 CAN/UL 3100 CAN/CSA-Z434 KS C 9610-6-2 KS C 9610-6-4 ANSI/CAN/UL/ULC 2271 UN 38.3 UL 1012 CAN/CSA C22.2.107.2 EN 61204-7 EN 62477-1 IEEE 802.11 a/b/g |
EN ISO 12100 EN ISO 13849-1 EN 60204-1 EN ISO 10218-1 EN ISO 3691-4 EN 12895 EN 61326-3-1 EN 61326-1 CAN/UL 3100 CAN/CSA-Z434 KS C 9610-6-2 KS C 9610-6-4 ANSI/CAN/UL/ULC 2271 UN 38.3 UL 1012 CAN/CSA C22.2.107.2 EN 61204-7 EN 62477-1 IEEE 802.11 a/b/g |
|
Certifications and markings |
Battery: CE Stationary electronics and stationary coil: CE |
AMR: cULus Battery: cRUus Docking station: cULus |
AMR: cULus Battery: cRUus Docking station: cULus |
AMR: cTUVus Battery: cTUVus, CE Power supply box: cTUVus Docking target: cTUVus |
AMR: cTUVus Battery: cURus, CE Power supply box: cTUVus Docking target: cTUVus |
|
ESD option |
No |
Yes |
Yes |
No |
No |
|
Control interface |
MobilePlanner |
MobilePlanner |
MobilePlanner |
MobilePlanner |
MobilePlanner |
