Product
AUTONOMOUS MOBILE ROBOT
LD Series
Automate transport with smart navigation, obstacle avoidance, and fast deployment.
Models
01
LD-60
The LD-60 autonomously transports up to 60 kg, combining precision navigation, obstacle detection, and a top speed of 1800 mm/s. Compact and efficient, it integrates seamlessly into your operations and offers optional ESD protection for sensitive products.
Maximum payload |
60 kg |
Maximum speed |
1800 mm/s |
Run time |
15 h (no payload), 12 h (full payload) |
View product details
02
LD-90
The LD-90 handles up to 90 kg with precise navigation, obstacle detection, and automatic dock charging. It powers custom toppers, and the optional ESD version ensures safe handling of sensitive electronics, meeting IEC 61340-5-1 standards.
Maximum payload |
90 kg |
Maximum speed |
1350 mm/s |
Run time |
15 h (no payload), 12 h (full payload) |
View product details
03

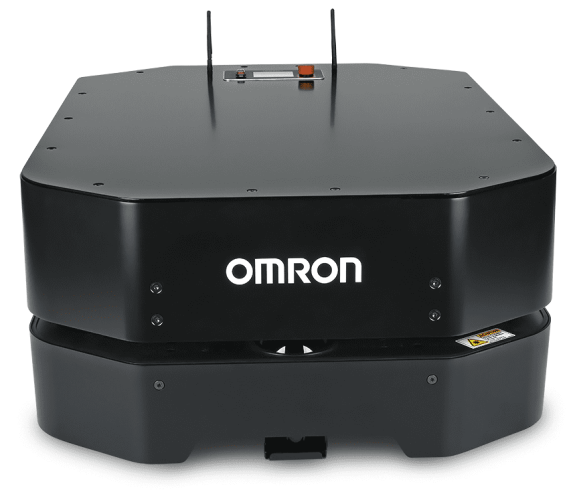

LD-250
The LD-250 moves up to 250 kg in a single trip, saving time and effort on heavy loads. Built for tough environments, this AMR improves efficiency, reduces labor strain, and integrates easily into your operations for reliable, seamless material transport.
Maximum payload |
250 kg |
Maximum speed |
1200 mm/s |
Run time |
13 h (no payload), 10 h (full payload) |
View product details
04
LD ESD
The entire LD series is available with an optional ESD feature, which dissipates static energy to protect sensitive products. This prevents damage, reduces costs, and ensures reliable operation in complex environments—all while meeting IEC 61340-5-1 standards.
Joint protection |
Compatible with ESDS products and LD-series |
Surface resistance |
Rg < 1 x 10^9 (IEC 61340-5-1) |
Field strength |
Protects above 40 kV/cm |
View product details
Compare our AMRs
Product
60 kg (LD-60) 90 kg (LD-90)
1800 mm/s (LD-60) 1350 mm/s (LD-90)
15 h (no payload) 12 h (full payload)
2 h 10 m (20% to 80% charge)
≤ 60 kg: 4.8° (8.3%) > 60 kg: Level floor only
Class 1 safety lasers Optional side lasers Emergency stops Audible & visual indicators Advanced obstacle avoidance
IP20
ISO 5 / Class 100
MobilePlanner
250 kg
1200 mm/s
13 h (no payload) 10 h (full payload)
2 h 10 m (20% to 80% charge)
1.7° / 3% incline
Class 1 safety lasers TOF sensors Emergency stops Audio & visual indicators Advanced obstacle avoidance
IP20
ISO 5 / Class 100
MobilePlanner
650 kg (MD-650) 900 kg (MD-900)
2200 mm/s (MD-650) 1800 mm/s (MD-900)
10 h (no payload) 8 h (full payload)
19.6 min (20% to 80% charge)
5° / 8.75% incline
Two Safety Laser Scanners 360° safety coverage Emergency stops (5 total) Audible & visual indicators Advanced obstacle avoidance
IP22 IP10 for charging pads
ISO 4 / Class 10
MobilePlanner
1500 kg
1800 mm/s
12.5 h (no payload) 9 h (full payload)
24 min (20% to 80% charge)
5° / 8.75% incline
Class 1 scanning safety lasers 360° safety coverage Emergency stops (5 total) Audible & visual indicators Advanced obstacle avoidance
IP20
ISO 5 / Class 100
MobilePlanner
450 kg
1200 mm/s (forward/lateral) 300 mm/s (reverse)
11 h (no payload) 7 h (full payload)
45 min (5% to 95% charge)
Flat surfaces only
360° safety coverage 2 front safety scanners E-stop buttons (2 total) Rear bumper stops AMR Programmable warning Advanced obstacle avoidance
IP20
–
MobilePlanner
Maximum payload
Maximum speed
Run time
Charging time
Maximum slope
Safety features
IP rating
Cleanroom rating
Control interface
|
|
|||||
|---|---|---|---|---|---|
|
Maximum payload |
60 kg (LD-60) 90 kg (LD-90) |
250 kg |
650 kg (MD-650) 900 kg (MD-900) |
1500 kg |
450 kg |
|
Maximum speed |
1800 mm/s (LD-60) 1350 mm/s (LD-90) |
1200 mm/s |
2200 mm/s (MD-650) 1800 mm/s (MD-900) |
1800 mm/s |
1200 mm/s (forward/lateral) 300 mm/s (reverse) |
|
Run time |
15 h (no payload) 12 h (full payload) |
13 h (no payload) 10 h (full payload) |
10 h (no payload) 8 h (full payload) |
12.5 h (no payload) 9 h (full payload) |
11 h (no payload) 7 h (full payload) |
|
Charging time |
2 h 10 m (20% to 80% charge) |
2 h 10 m (20% to 80% charge) |
19.6 min (20% to 80% charge) |
24 min (20% to 80% charge) |
45 min (5% to 95% charge) |
|
Maximum slope |
≤ 60 kg: 4.8° (8.3%) > 60 kg: Level floor only |
1.7° / 3% incline |
5° / 8.75% incline |
5° / 8.75% incline |
Flat surfaces only |
|
Safety features |
Class 1 safety lasers Optional side lasers Emergency stops Audible & visual indicators Advanced obstacle avoidance |
Class 1 safety lasers TOF sensors Emergency stops Audio & visual indicators Advanced obstacle avoidance |
Two Safety Laser Scanners 360° safety coverage Emergency stops (5 total) Audible & visual indicators Advanced obstacle avoidance |
Class 1 scanning safety lasers 360° safety coverage Emergency stops (5 total) Audible & visual indicators Advanced obstacle avoidance |
360° safety coverage 2 front safety scanners E-stop buttons (2 total) Rear bumper stops AMR Programmable warning Advanced obstacle avoidance |
|
IP rating |
IP20 |
IP20 |
IP22 IP10 for charging pads |
IP20 |
IP20 |
|
Cleanroom rating |
ISO 5 / Class 100 |
ISO 5 / Class 100 |
ISO 4 / Class 10 |
ISO 5 / Class 100 |
– |
|
Control interface |
MobilePlanner |
MobilePlanner |
MobilePlanner |
MobilePlanner |
MobilePlanner |
