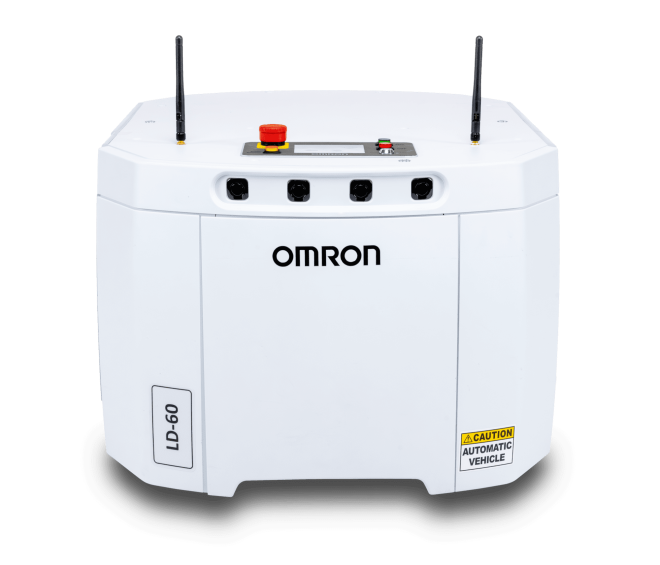

LD-60/90
The LD-60/90 autonomously moves parts, work-in-process, and replenishment between workstations and logistics areas without fixed routes or guidance infrastructure. It navigates around people and obstacles in real time and docks accurately for reliable pick-up and drop-off. With 60 kg and 90 kg payload options, it helps reduce manual transport, keep materials moving, and free your operators for higher-value work.
LD-60
|
Maximum payload |
60 kg |
|
Maximum speed |
1800 mm/s |
|
Run time |
15 h (no payload), 12 h (full payload) |
|
Charging time |
2 h 10 m (for 20–80% charge) |
|
Maximum slope |
4.8° / 8.3% incline |
|
Control interface |
LD-90
|
Maximum payload |
90 kg |
|
Maximum speed |
1350 mm/s |
|
Run time |
15 h (no payload), 12 h (full payload) |
|
Charging time |
2 h 10 m (for 20–80% charge) |
|
Maximum slope |
Level floor only |
|
Control interface |
MobilePlanner |
LD-90x
|
Maximum payload |
90 kg |
|
Maximum speed |
900 mm/s |
|
Run time |
20 h (no payload), 15 h (full payload) |
|
Charging time |
2 h 10 m (for 20–80% charge) |
|
Maximum slope |
Level floor only |
|
Control interface |
MobilePlanner |
Gallery
FEATURES
LD-60/90—smarter automation for safer material flow
Autonomous navigation
Creates its own map and navigates without floor magnets, tape, or beacons, reducing setup time and infrastructure costs.
Advanced safety features
Safety-rated lasers, rear sonar, bumpers, and low front obstacle detection help it operate safely around people and traffic.
Precise goal alignment
Accurate positioning at goals supports smooth, reliable pick-ups and drop-offs at carts, racks, and workstations.
Fast installation
Deploy quickly with no facility modifications, preset routes, or navigation infrastructure required.
Fleet management that scales
Supports intelligent job assignment, traffic control, automatic updates, and charge management across larger fleets.
Factory system integration
Connects with MES, ERP, and WMS systems to automate job flow in real time.
ESD and standards-ready options
Available in ESD configurations for static-sensitive applications and supported by key industrial compliance standards.
CASE STUDY
See how Polar Semiconductor leveraged OMRON’s LD series AMRs to cut 40 miles of manual material transport
APPLICATIONS
Built for light-duty material transport
From parts delivery and work-in-process to finished goods transport, OMRON autonomous mobile robots help automate material movement across manufacturing, warehousing, and logistics.
See all applications
SOFTWARE
Smarter fleets faster flow
Define jobs once and let FLOW Core assign tasks, balance workloads, and manage traffic in real time—even across large AMR fleets. Integrated mapping, zone control, and analytics give you the visibility needed to keep robots moving efficiently across your operation.
Learn more
SOFTWARE ACTIVATION
Activate your AMR software
Activate AMR and Fleet Manager licenses in just a few steps so your fleet is ready to work.
Get started
MANIPULATOR SOLUTION
Collaborative production starts with MoMa
Transform your operations with Mobile Manipulator applications that combine collaborative and autonomous mobile robots to automate transport, picking, and part handling with greater flexibility, productivity, and precision.
Learn more about MoMas
video
End-to-end automation
Explore OMRON’s full automation portfolio—controllers, safety, vision, and I/O—working together with autonomous mobile robots to automate material transport throughout your facility. Use a single platform to coordinate AMRs with lines, lifts, doors, and equipment, trigger missions from sensors or PLC logic, and keep operations running smoothly.
Motion
Servos ensure efficient line movement, reducing downtime and maintenance for smoother, more reliable operations.
Robotics
Industrial, mobile, and collaborative robots enhance productivity and easily adapt to a wide range of applications with precision.
Control
Control units integrate your production line, maximizing productivity while saving space with built-in systems.
Vision
Cameras and sensors adapt to your environment, enabling smooth, accurate, and high-quality automated processes.
Safety
Safety sensors ensure seamless human-machine collaboration, reducing risks and enhancing workplace safety.
