Meet the OL-450S — A smarter way to automate cart transport
450 kg
1.2 m/s
108 – 308mm
360°
Why material flow matters more than ever
Cart transport issues usually start small. A cart is in the wrong place. A trolley shows up late. An operator has to stop what they’re doing to move materials by hand. None of it seems major on its own, but over a shift, those small interruptions can slow handoffs, increase walking time, and make production flow harder to predict.
The challenge is that manual cart transport often blends into the background. It feels like part of the job until operators start searching for carts, waiting on materials, or stepping away from higher-value work to keep things moving. In fast-moving production environments, those moments add up quickly, turning routine cart moves into a steady source of lost time and disrupted flow.
From moving carts to controlling flow
Effective cart transport automation needs to do more than replace a manual trip. It has to perform in the real conditions of the floor: shared routes, tight spaces, changing priorities, and constant movement. That means supporting:
- Predictable transport between workcells, staging areas, storage zones, and lines
- Reliable navigation around people, carts, equipment, and moving obstacles
- A compact footprint for narrow aisles, elevators, doorways, and low-clearance areas
- Industrial payload capacity for carts, racks, roll cages, and trolleys
- Simple operation that can scale as transport needs grow
The OL-450S is built for that reality.
Meet the OL-450S

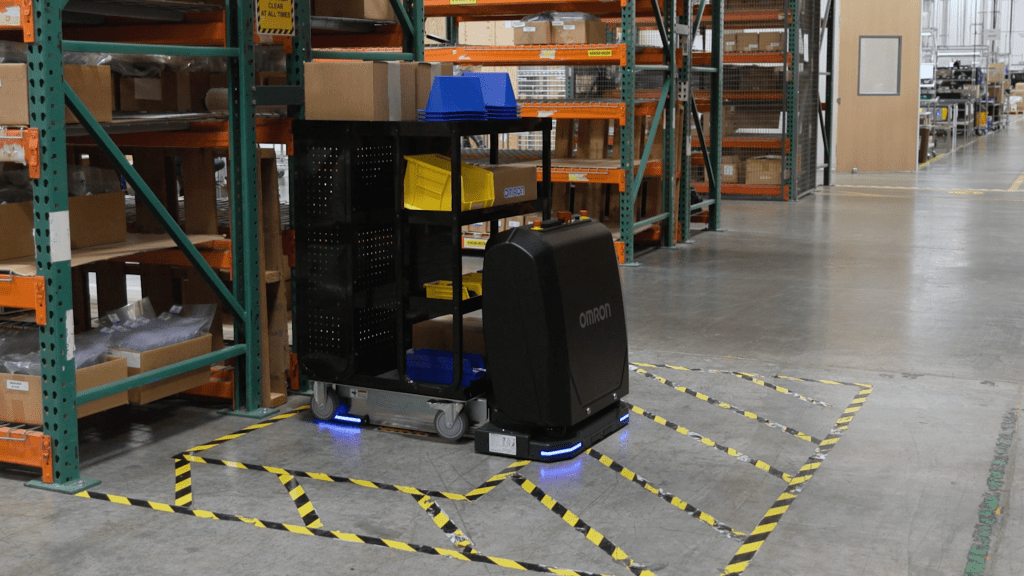

The OL-450S is OMRON’s turnkey AMR solution for cart transport automation. Built for manufacturing and intralogistics environments, it picks up and moves carts, trolleys, roll cages, and similar load carriers without requiring operators to step away from higher-value work.

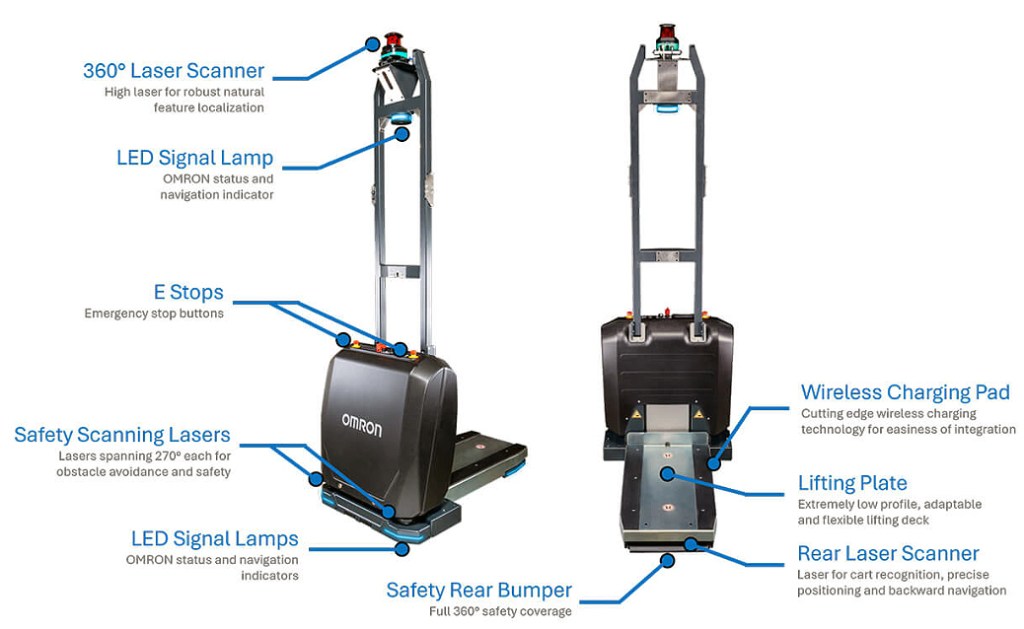

Unlike general-purpose mobile robots adapted for cart movement, the OL-450S is designed around the realities of cart transport from the start. The AMR combines low-profile lifting, omni-directional mobility, and a compact footprint to support movement through tight spaces, low-clearance routes, and mixed-traffic areas. Its lifting range and payload capacity allow it to work with a variety of compatible carts and load carriers, while the compact design helps it move through space-constrained routes.
The result is a practical, purpose-built platform for keeping materials moving with less manual effort.
Key specifications at a glance
- Payload: 450 kg

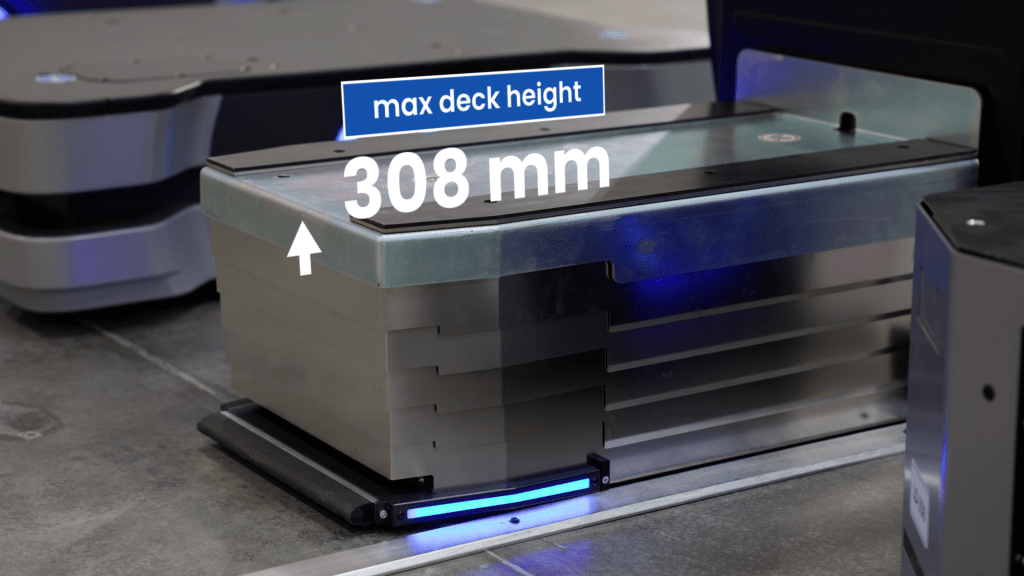

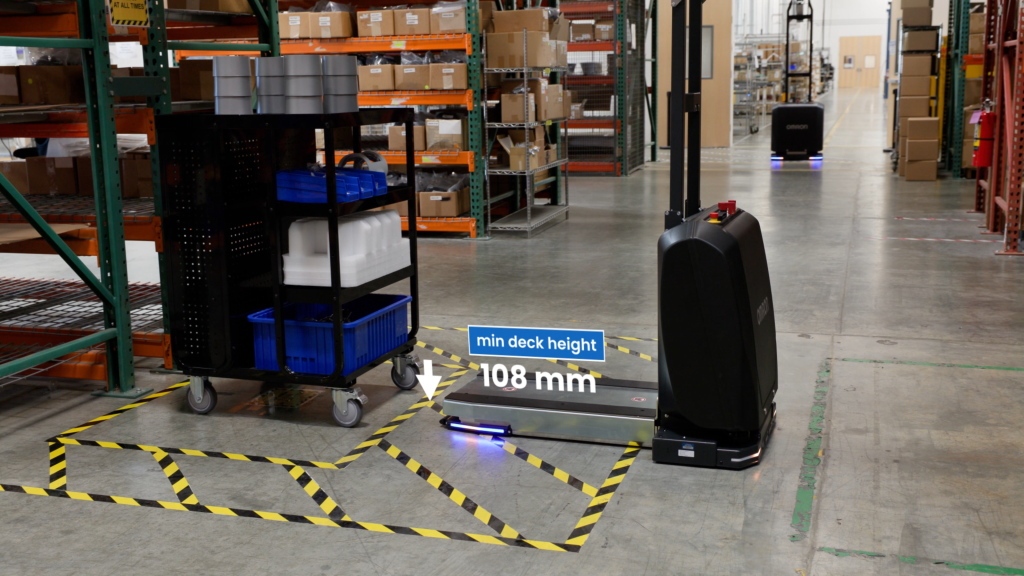

- Lift Range: 108 mm – 308 mm

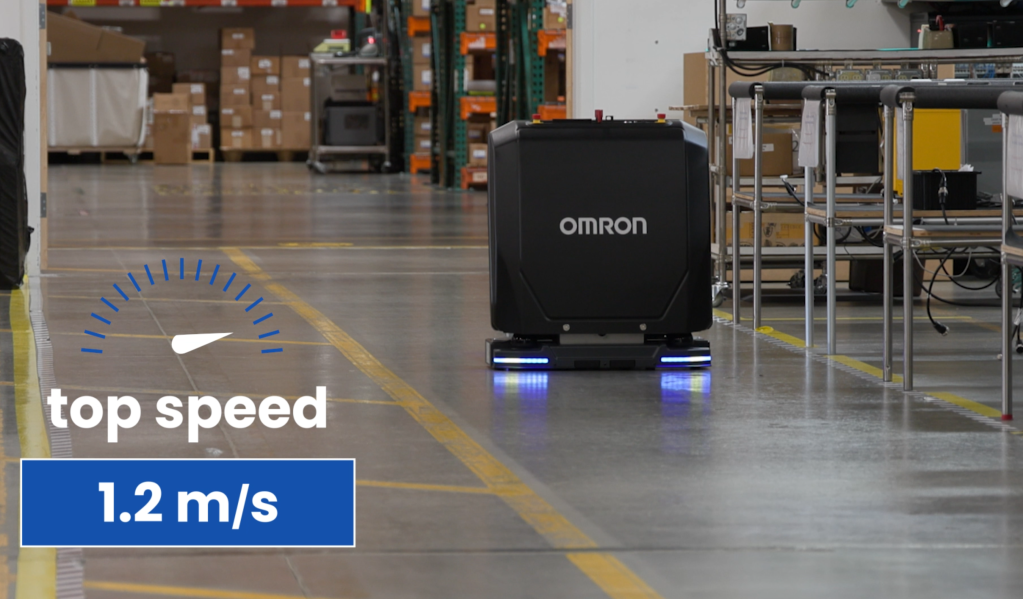

- Top Speed: 1.2 m/s

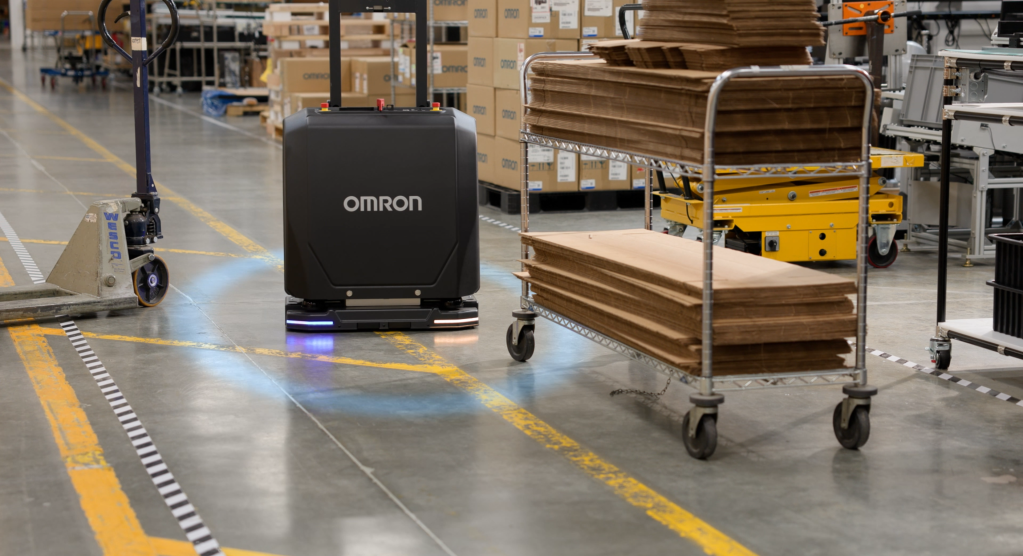

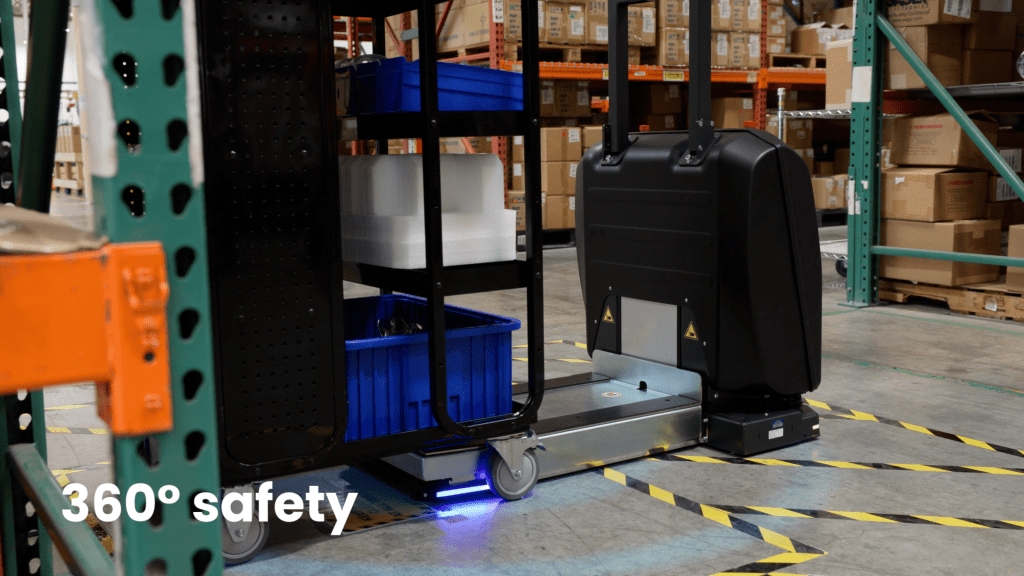

- Safety Coverage: 360°
- Runtime: up to 11 h no payload, 7 h full payload

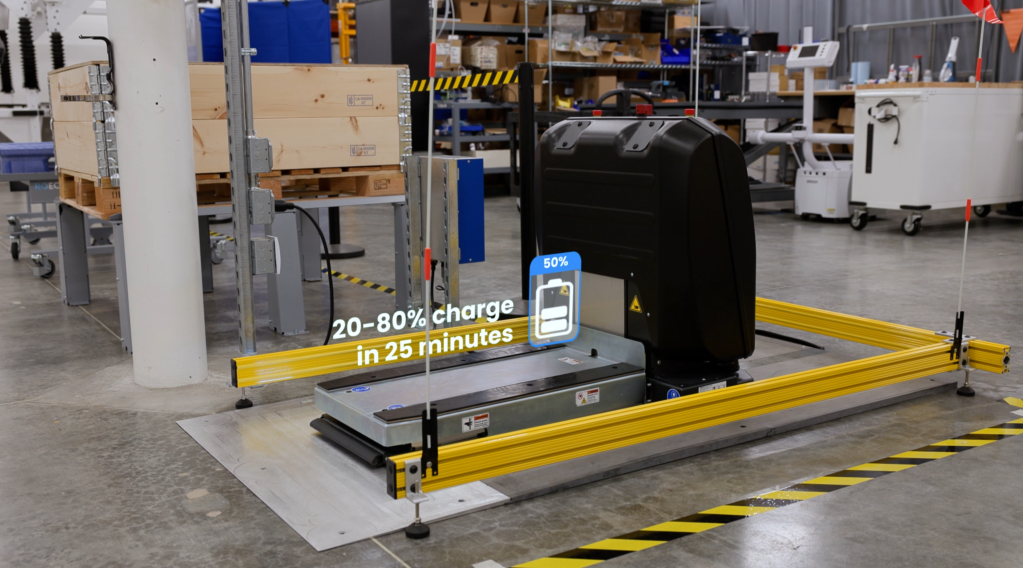

- Recharge Time: 20% to 80% in as little as 25 min
- Fleet Management: FLOW Core software

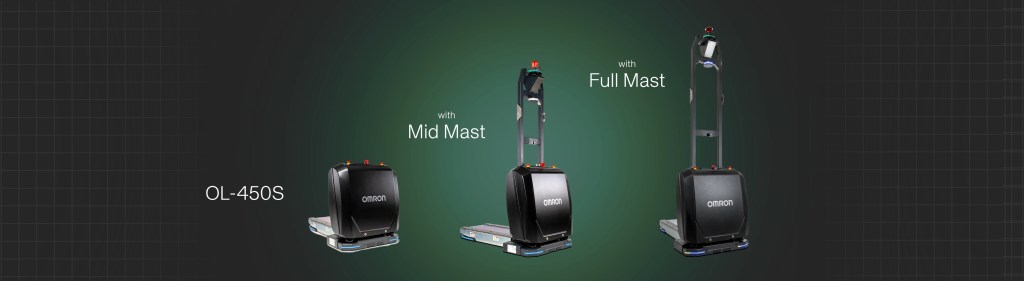

Built to match your environment
Not every cart transport workflow moves through the same conditions. Some routes need the lowest possible profile for tight spaces and low-clearance areas. Others need added scanner height for reliable navigation in busy, shared environments.

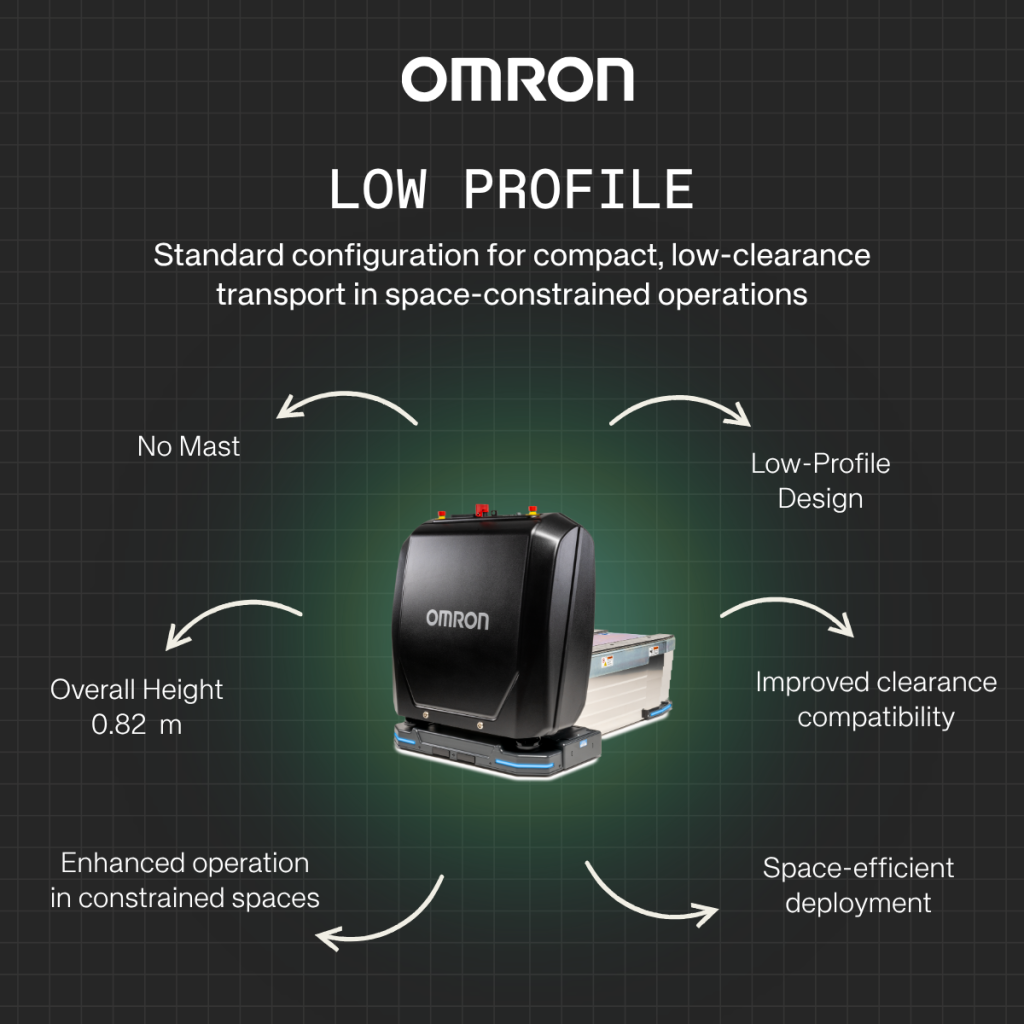

The standard no-mast configuration fits compact, height-constrained applications where clearance is critical. It supports movement through narrow aisles, low door sections, overhead structures, and fixed production areas where a taller configuration could limit route flexibility.

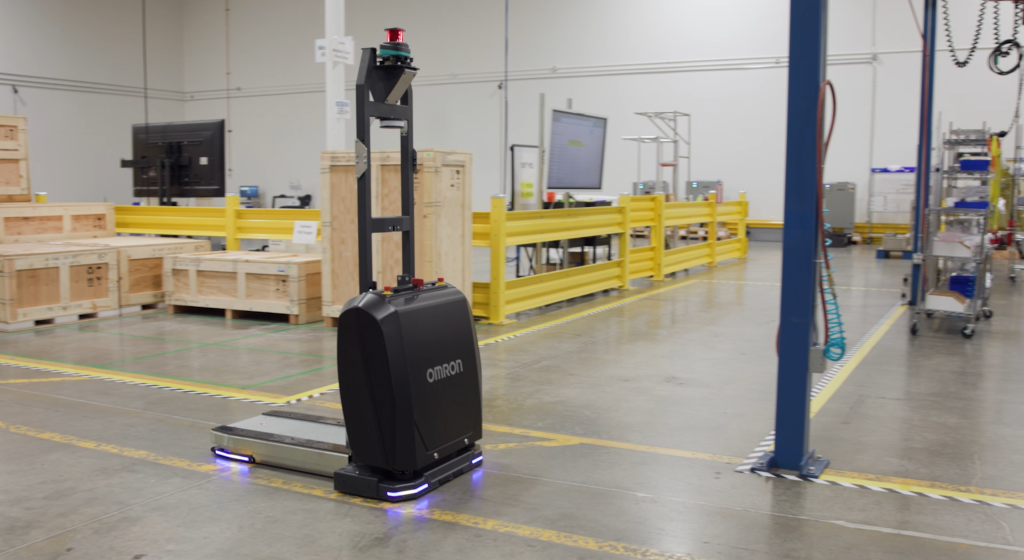

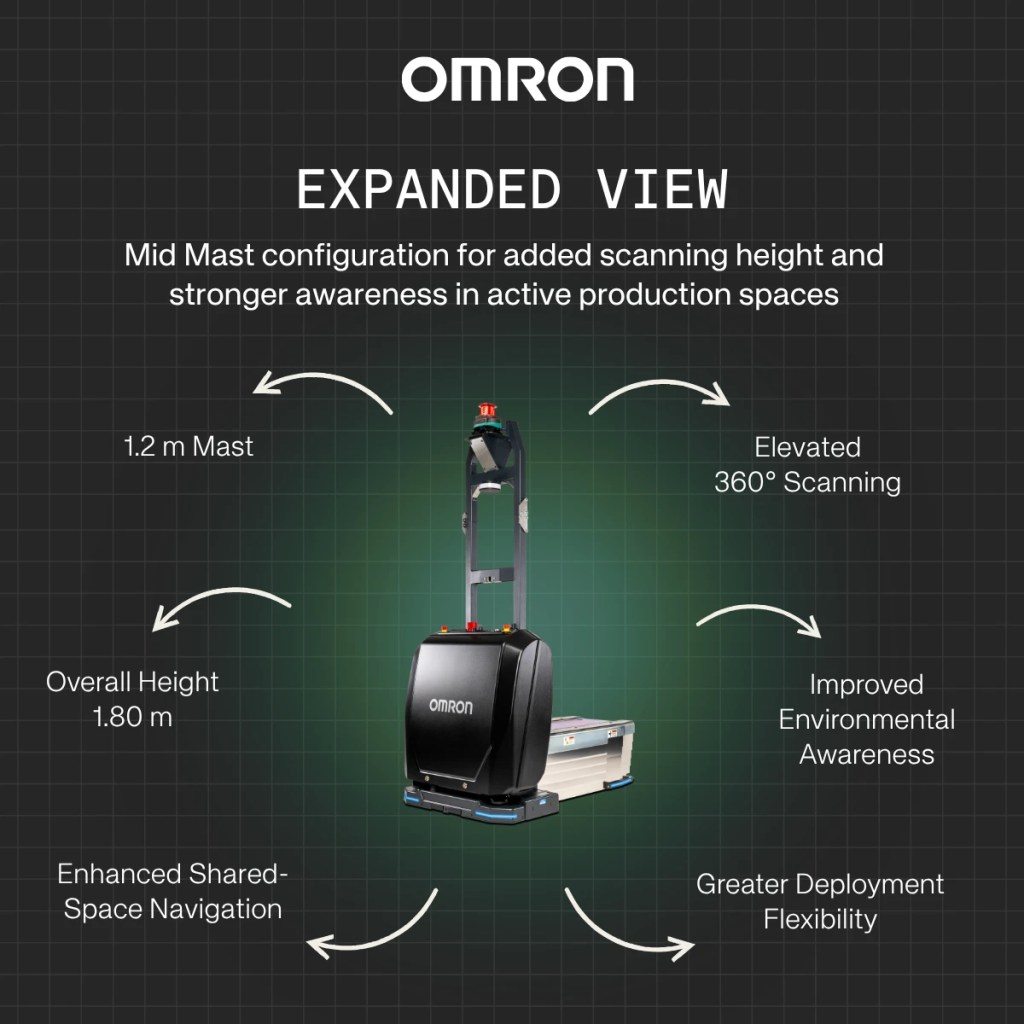

The mid-mast configuration is designed for highly dynamic, high-traffic environments where improved localization and navigation are critical, but vertical clearance is limited. By raising the scanner above floor-level activity, it enhances environmental awareness in shared spaces with moving carts, people, and equipment while preserving access through elevators, doorways, and low overhead structures.

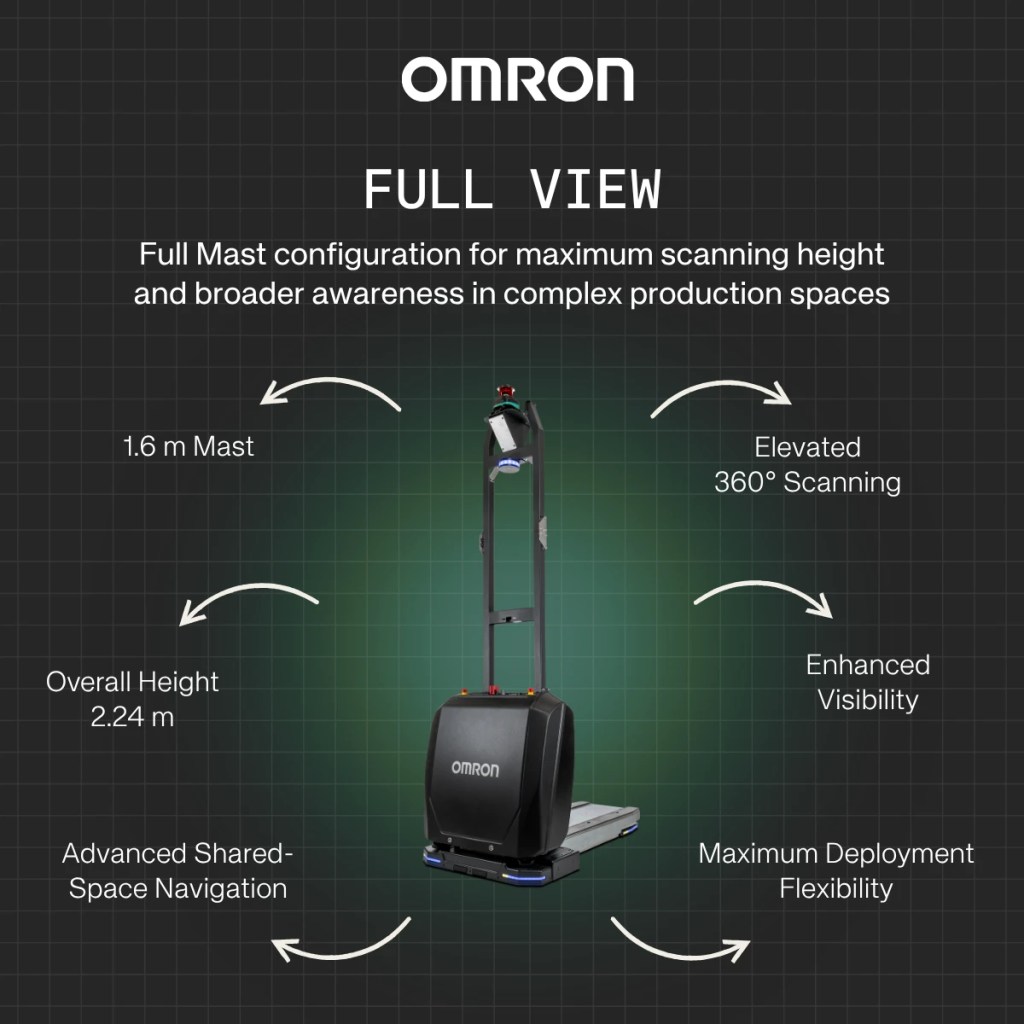

Full-mast configuration provides the highest scanning position for robust localization and navigation in very dynamic, high-traffic environments. By referencing stable features higher in the facility, it supports strong navigation performance across large, busy, and visually complex operations. Where height constraints are not a limiting factor, it maximizes environmental visibility and navigation robustness.
These configuration options help manufacturers extend the OL-450S across more cart transport workflows without changing the core AMR platform.
| Configuration | Best fit | Primary benefit |
|---|---|---|
| No mast | Low-clearance routes and compact layouts | Keeps the platform as compact as possible |
| Mid mast, 1.2 m | High‑traffic, dynamic environments with height restrictions | Improves localization and navigation while maintaining access through tight clearances |
| Full mast, 1.6 m | Most applications in highly dynamic, high‑traffic environments | Maximizes localization and navigation performance with the highest scanning position |
“With the expanded OL‑450S configurations, we’re giving customers the flexibility to match the robot to their environment instead of forcing the environment to adapt to the robot,” said Mona Fahimi, Global Product Manager for OL‑450S at OMRON Robotics.
Adaptable to the way materials move
Cart transport automation creates the most value when it can reduce manual handling without forcing unnecessary changes to the operation. The OL-450S supports repetitive transport between production lines, workcells, staging areas, storage zones, and other internal logistics points where consistent flow matters.
Compatible with existing carts and trolleys

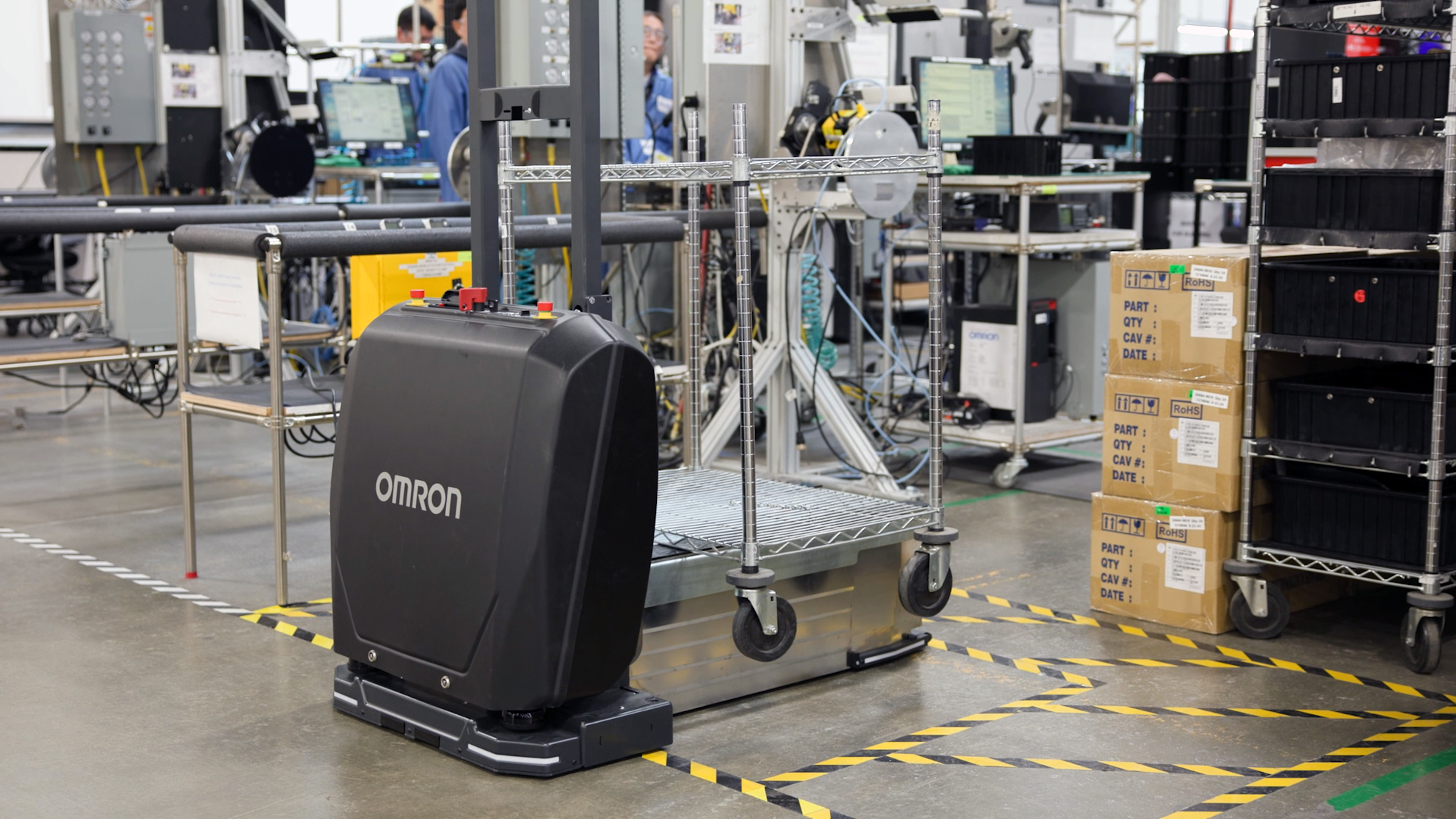

The OL-450S can work with existing carts, trolleys, and roll cages, helping manufacturers automate routine transport tasks without redesigning the entire process around the robot. That makes it easier to reduce manual cart handling while preserving familiar material flow patterns.
Configured for application-specific needs
For applications with specific cart geometries or interface requirements, system integrators can modify the lifting plate within defined guidelines. Height, width, or length adjustments can help accommodate cart geometry, align with railings, or support larger cart formats. This gives teams more flexibility to match the robot to the application while keeping deployment practical.
Ready for steady day-to-day use
Daily production use is supported by omni-directional movement, wireless charging, up to 7 hours of runtime at full payload, and recharge from 20% to 80% in as little as 25 minutes. That helps maximize uptime and keep automated cart transport available across shifts.
Scalable across routes and fleets
Managed through FLOW Core, the AMR can operate as part of a broader fleet with centralized traffic control, task management, and system visibility. As transport needs grow, teams can expand automation across more routes, workflows, and facilities.
Where the OL-450S fits into daily operations
The strongest fit for the OL-450S is in areas where cart movement is frequent, repeatable, and important to keeping work moving. Common applications include production support, line-side replenishment, warehouse transport, intralogistics routes, and tight or mixed-traffic spaces.
Production support and line-side replenishment
Production teams depend on timely material movement between storage, staging, workcells, and line-side locations. By automating routine cart transfers, the OL-450S helps keep parts, tools, and work-in-progress materials available where they are needed.
That means less manual travel, smoother handoffs, and fewer interruptions for operators focused on production.
Warehouse and intralogistics transport
Warehouses and distribution centers rely on constant movement between picking, packing, consolidation, storage, and outbound staging. When these cart and rack transfers are handled manually, they can pull labor into repetitive transport work throughout the day.
Automated cart transport helps reduce non-value-added walking and pushing, improve internal transport consistency, ease congestion in shared pathways, and free teams to focus on higher-priority tasks.
Tight spaces and mixed traffic
Cart movement often happens in narrow aisles, low-clearance routes, busy intersections, and shared spaces where people, carts, and equipment move together. In these areas, flexibility matters.
The OL-450S supports cart transport in space-constrained environments with a compact footprint, omni-directional movement, and modular mast configurations. For applications where clearance is a key concern, the Standard configuration provides a low-profile option.
Better flow starts with understanding the workflow
Operational improvement does not always require changing the entire process. Often, it starts with looking closely at the routine transport tasks that make material movement less predictable.
Cart transport is one of those areas. When these movements become more consistent, teams gain a steadier flow of work across the operation.
The OL-450S gives teams a practical way to automate cart transport, but the robot is only one part of the larger workflow. A strong deployment depends on the real conditions on the floor, including cart type, load weight, route layout, clearance, traffic, and handoff points.
What to evaluate first
If cart movement is creating friction in your operation, start with the workflow itself. Understanding the carts, loads, routes, clearances, traffic, and handoff points helps determine where automation can create the most value and how the solution should be configured.
We can help evaluate those requirements and map out the next step.
