AUTONOMOUS MOBILE ROBOT
LD Series
Automate transport with smart navigation, obstacle avoidance, and fast deployment.
Models
Models
01

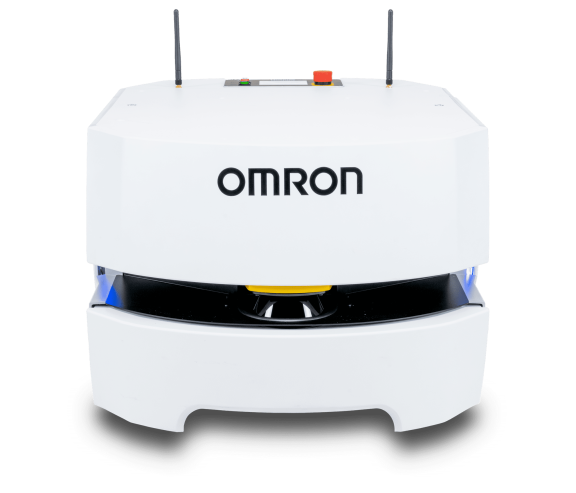

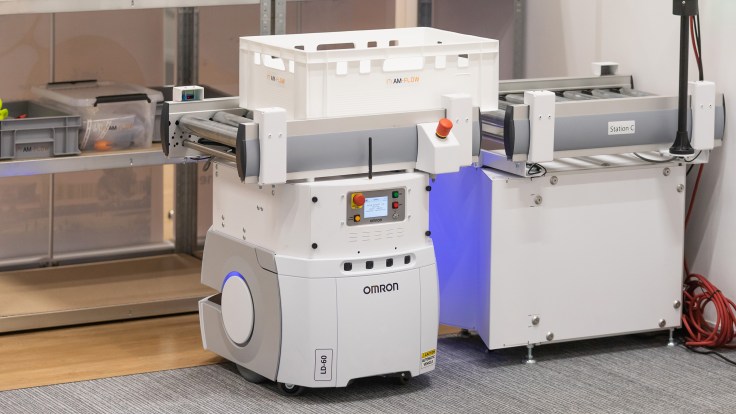

LD-60

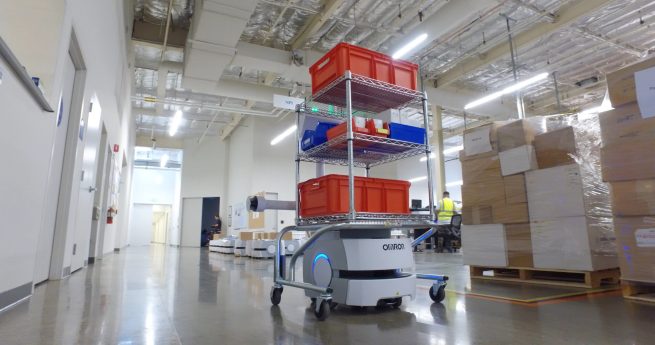

Bring autonomous transport to lighter-duty workflows and space-constrained operations. The LD-60 combines a compact footprint, fast travel speeds, and precise navigation to move up to 60 kg efficiently through busy facilities—helping streamline routine transport while offering an optional ESD version for static-sensitive products.
Maximum payload |
60 kg |
Maximum speed |
1800 mm/s |
Run time |
15 h (no payload), 12 h (full payload) |
View product details
02

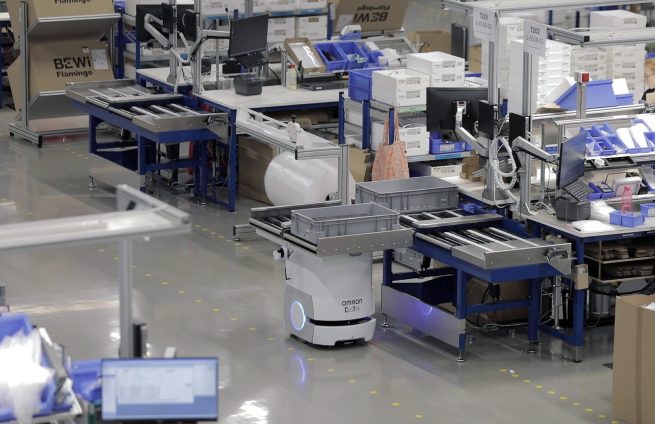

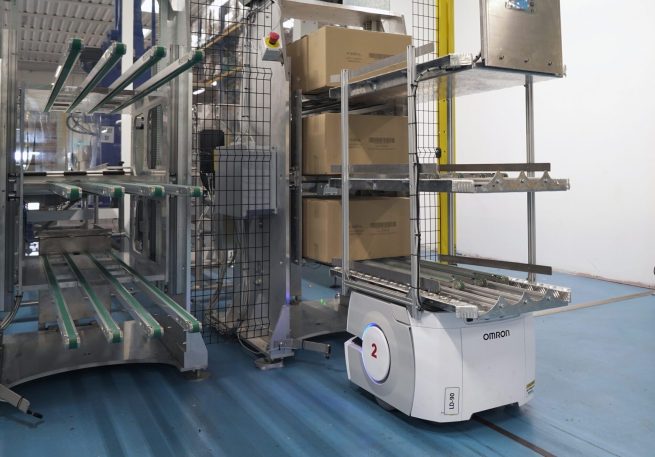

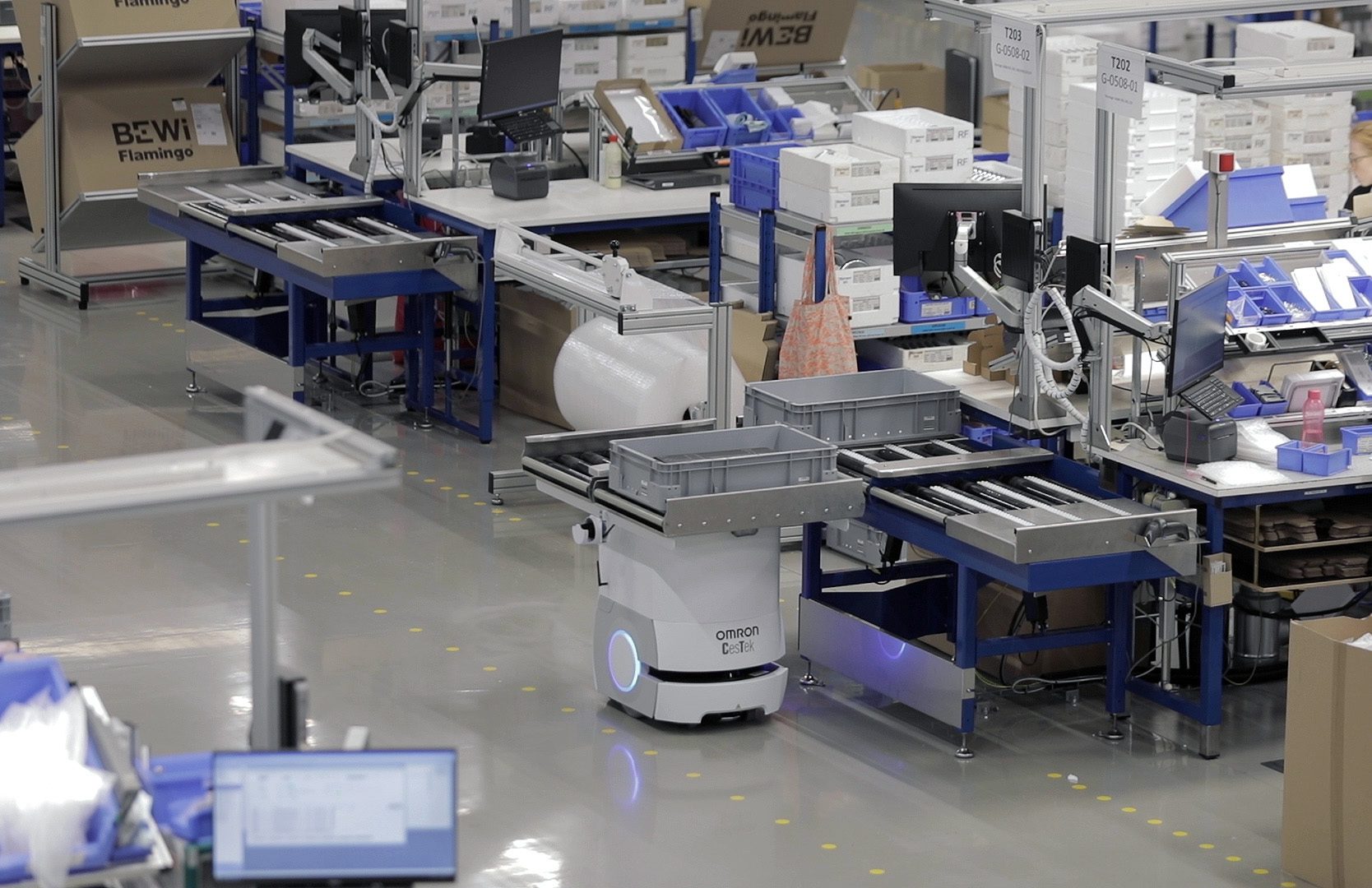

LD-90
Add more capacity and flexibility to material transport workflows across the factory floor. The LD-90 handles payloads up to 90 kg with precise navigation and automatic dock charging, while support for custom toppers expands the range of applications it can support—plus an optional ESD version for electronics and other static-sensitive environments.
Maximum payload |
90 kg |
Maximum speed |
1350 mm/s |
Run time |
15 h (no payload), 12 h (full payload) |
View product details
03

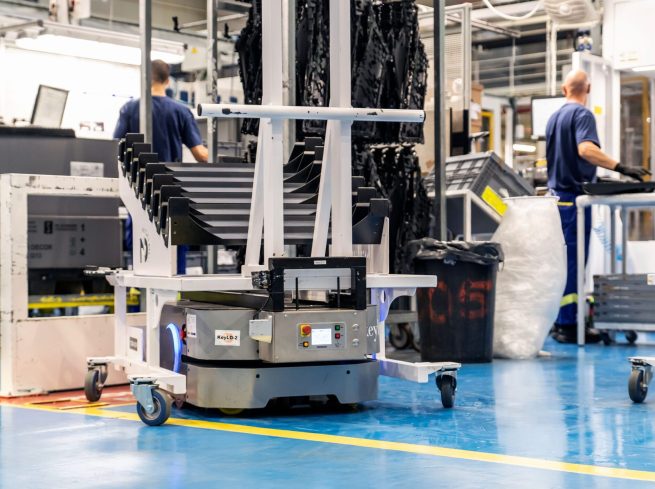

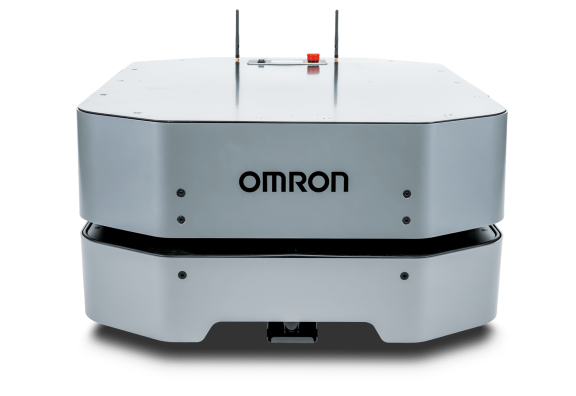

LD-250
Take on heavier transport tasks with a mobile robot built for larger payloads and more demanding operations. The LD-250 moves loads up to 250 kg with intelligent route planning and collision avoidance, helping maintain flow in high-traffic environments—while an optional ESD configuration supports electronics manufacturing and other static-controlled applications.
Maximum payload |
250 kg |
Maximum speed |
1200 mm/s |
Run time |
13 h (no payload), 10 h (full payload) |
View product details
Compare our AMRs
Product
60 kg (LD-60) 90 kg (LD-90)
1800 mm/s (LD-60) 1350 mm/s (LD-90)
15 h (no payload) 12 h (full payload)
2 h 10 m (20% to 80% charge)
≤ 60 kg: 4.8° (8.3%) > 60 kg: Level floor only
240° field of view Front safety scanning laser Emergency stops Advanced obstacle avoidance Rear sonar sensing Front bumper sensors Audible and visual indicators
IP20
ISO 5 / Class 100
EN ISO 12100 EN ISO 13849-1 EN 60204-1 EN ISO 3691-4 (with exceptions) ANSI B56.5 EN 61000-6-2 EN 61000-6-4 UL 3100 KN 61000-6-2 KN 61000-6-4 ANSI/CAN/UL/ULC 2271 UN 38.3 UL 1012 CSA C22.2 No. 107.2 IEEE 802.11 a/b/g
AMR: cULus Battery: cRUus Docking station: cULus
Yes
MobilePlanner
250 kg
1200 mm/s
13 h (no payload) 10 h (full payload)
2 h 10 m (20% to 80% charge)
1.7° / 3% incline
240° field of view Front safety scanning laser Low front laser Advanced obstacle avoidance Optional laser scanners Emergency stops (3 total) Rear TOF sensing Audible and visual indicators
IP20
ISO 5 / Class 100
EN ISO 12100 EN ISO 13849-1 EN 60204-1 EN ISO 3691-4 (with exceptions) EN 61000-6-2 EN 61000-6-4 UL 3100 KN 61000-6-2 KN 61000-6-4 ANSI/CAN/UL/ULC 2271 UN 38.3 UL 1012 CSA C22.2 No. 107.2 IEEE 802.11 a/b/g
AMR: cULus Battery: cRUus Docking station: cULus
Yes
MobilePlanner
650 kg (MD-650) 900 kg (MD-900)
2200 mm/s (MD-650) 1800 mm/s (MD-900)
10 h (no payload) 8 h (full payload)
19.6 min (20% to 80% charge)
5° / 8.75% incline
360° safety coverage Two safety laser scanners Low obstacle detection lasers Advanced obstacle avoidance Emergency stops (5 total) Audible and visual indicators Optional vertical laser scanners
IP22 IP10 for charging pads
ISO 4 / Class 10
EN ISO 12100 EN ISO 13849-1 EN 60204-1 EN ISO 10218-1 EN ISO 3691-4 EN 12895 EN 61326-3-1 EN 61326-1 ANSI/RIA R15.08 CAN/UL 3100 CAN/CSA-Z434 KS C 9610-6-2 KS C 9610-6-4 ANSI/CAN/UL/ULC 2271 UN 38.3 UL 1012 CAN/CSA C22.2.107.2 EN 61204-7 EN 62477-1 IEEE 802.11 a/b/g
AMR: cTUVus Battery: cTUVus, CE Power supply box: cTUVus Docking target: cTUVus
No
MobilePlanner
1500 kg
1800 mm/s
12.5 h (no payload) 9 h (full payload)
24 min (20% to 80% charge)
5° / 8.75% incline
360° safety coverage Two safety laser scanners Low obstacle detection lasers Advanced obstacle avoidance Safety laser scanner zone sets Emergency stops (5 total) Audible and visual indicators Dual-channel emergency stop Dual-channel safety outputs Dual-channel protective stop interface Optional vertical laser scanners
IP20
ISO 5 / Class 100
EN ISO 12100 EN ISO 13849-1 EN 60204-1 EN ISO 10218-1 EN ISO 3691-4 EN 12895 EN 61326-3-1 EN 61326-1 CAN/UL 3100 CAN/CSA-Z434 KS C 9610-6-2 KS C 9610-6-4 ANSI/CAN/UL/ULC 2271 UN 38.3 UL 1012 CAN/CSA C22.2.107.2 EN 61204-7 EN 62477-1 IEEE 802.11 a/b/g
AMR: cTUVus Battery: cURus, CE Power supply box: cTUVus Docking target: cTUVus
No
MobilePlanner
450 kg
1200 mm/s (forward/lateral) 300 mm/s (reverse)
11 h (no payload) 7 h (full payload)
25 min (20% to 80% charge)
Flat surfaces only
360° safety coverage 2 front safety scanners 29 safety scanner zone sets Advanced obstacle avoidance Emergency stops (2 total) Audible and visual indicators Rear bumper stop Safety approach light
IP20
–
EN ISO 12100 EN ISO 13849-1 EN IEC 60204-1 EN ISO 3691-4 (except clause 4.12) EN 61000-6-2 EN 61000-6-4 UN 38.3 UL 1564 EN 60335-2-29 EN 62311 EN 55011 IEEE 802.11 b/g
Battery: CE Stationary electronics and stationary coil: CE
No
MobilePlanner
Maximum payload
Maximum speed
Run time
Charging time
Maximum slope
Safety features
IP rating
Cleanroom rating
Compliance
Certifications and markings
ESD option
Control interface
|
|
|||||
|---|---|---|---|---|---|
|
Maximum payload |
60 kg (LD-60) 90 kg (LD-90) |
250 kg |
650 kg (MD-650) 900 kg (MD-900) |
1500 kg |
450 kg |
|
Maximum speed |
1800 mm/s (LD-60) 1350 mm/s (LD-90) |
1200 mm/s |
2200 mm/s (MD-650) 1800 mm/s (MD-900) |
1800 mm/s |
1200 mm/s (forward/lateral) 300 mm/s (reverse) |
|
Run time |
15 h (no payload) 12 h (full payload) |
13 h (no payload) 10 h (full payload) |
10 h (no payload) 8 h (full payload) |
12.5 h (no payload) 9 h (full payload) |
11 h (no payload) 7 h (full payload) |
|
Charging time |
2 h 10 m (20% to 80% charge) |
2 h 10 m (20% to 80% charge) |
19.6 min (20% to 80% charge) |
24 min (20% to 80% charge) |
25 min (20% to 80% charge) |
|
Maximum slope |
≤ 60 kg: 4.8° (8.3%) > 60 kg: Level floor only |
1.7° / 3% incline |
5° / 8.75% incline |
5° / 8.75% incline |
Flat surfaces only |
|
Safety features |
240° field of view Front safety scanning laser Emergency stops Advanced obstacle avoidance Rear sonar sensing Front bumper sensors Audible and visual indicators |
240° field of view Front safety scanning laser Low front laser Advanced obstacle avoidance Optional laser scanners Emergency stops (3 total) Rear TOF sensing Audible and visual indicators |
360° safety coverage Two safety laser scanners Low obstacle detection lasers Advanced obstacle avoidance Emergency stops (5 total) Audible and visual indicators Optional vertical laser scanners |
360° safety coverage Two safety laser scanners Low obstacle detection lasers Advanced obstacle avoidance Safety laser scanner zone sets Emergency stops (5 total) Audible and visual indicators Dual-channel emergency stop Dual-channel safety outputs Dual-channel protective stop interface Optional vertical laser scanners |
360° safety coverage 2 front safety scanners 29 safety scanner zone sets Advanced obstacle avoidance Emergency stops (2 total) Audible and visual indicators Rear bumper stop Safety approach light |
|
IP rating |
IP20 |
IP20 |
IP22 IP10 for charging pads |
IP20 |
IP20 |
|
Cleanroom rating |
ISO 5 / Class 100 |
ISO 5 / Class 100 |
ISO 4 / Class 10 |
ISO 5 / Class 100 |
– |
|
Compliance |
EN ISO 12100 EN ISO 13849-1 EN 60204-1 EN ISO 3691-4 (with exceptions) ANSI B56.5 EN 61000-6-2 EN 61000-6-4 UL 3100 KN 61000-6-2 KN 61000-6-4 ANSI/CAN/UL/ULC 2271 UN 38.3 UL 1012 CSA C22.2 No. 107.2 IEEE 802.11 a/b/g |
EN ISO 12100 EN ISO 13849-1 EN 60204-1 EN ISO 3691-4 (with exceptions) EN 61000-6-2 EN 61000-6-4 UL 3100 KN 61000-6-2 KN 61000-6-4 ANSI/CAN/UL/ULC 2271 UN 38.3 UL 1012 CSA C22.2 No. 107.2 IEEE 802.11 a/b/g |
EN ISO 12100 EN ISO 13849-1 EN 60204-1 EN ISO 10218-1 EN ISO 3691-4 EN 12895 EN 61326-3-1 EN 61326-1 ANSI/RIA R15.08 CAN/UL 3100 CAN/CSA-Z434 KS C 9610-6-2 KS C 9610-6-4 ANSI/CAN/UL/ULC 2271 UN 38.3 UL 1012 CAN/CSA C22.2.107.2 EN 61204-7 EN 62477-1 IEEE 802.11 a/b/g |
EN ISO 12100 EN ISO 13849-1 EN 60204-1 EN ISO 10218-1 EN ISO 3691-4 EN 12895 EN 61326-3-1 EN 61326-1 CAN/UL 3100 CAN/CSA-Z434 KS C 9610-6-2 KS C 9610-6-4 ANSI/CAN/UL/ULC 2271 UN 38.3 UL 1012 CAN/CSA C22.2.107.2 EN 61204-7 EN 62477-1 IEEE 802.11 a/b/g |
EN ISO 12100 EN ISO 13849-1 EN IEC 60204-1 EN ISO 3691-4 (except clause 4.12) EN 61000-6-2 EN 61000-6-4 UN 38.3 UL 1564 EN 60335-2-29 EN 62311 EN 55011 IEEE 802.11 b/g |
|
Certifications and markings |
AMR: cULus Battery: cRUus Docking station: cULus |
AMR: cULus Battery: cRUus Docking station: cULus |
AMR: cTUVus Battery: cTUVus, CE Power supply box: cTUVus Docking target: cTUVus |
AMR: cTUVus Battery: cURus, CE Power supply box: cTUVus Docking target: cTUVus |
Battery: CE Stationary electronics and stationary coil: CE |
|
ESD option |
Yes |
Yes |
No |
No |
No |
|
Control interface |
MobilePlanner |
MobilePlanner |
MobilePlanner |
MobilePlanner |
MobilePlanner |
