Product
COLLABORATIVE
OMRON TM S Series
OMRON’s most advanced collaborative robots enhance safety and human–machine collaboration.
OMRON TM S models
Models
01

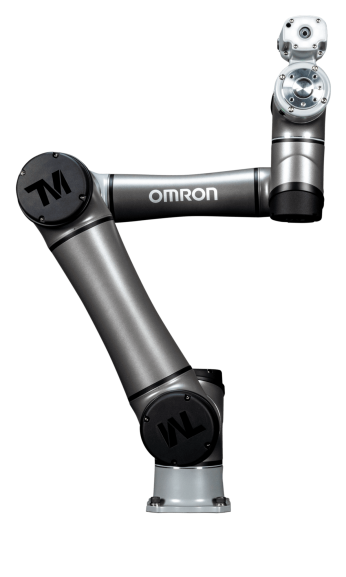

OMRON TM5S
Add precise, collaborative automation to small‑scale workflows. The TM5S combines certified collaborative safety, a compact form factor, and accurate motion control for tasks such as assembly, inspection, and light handling—streamlining detailed work while maintaining high quality and consistency.
Maximum payload |
5 kg |
Maximum reach |
900 mm |
Repeatability |
±0.03 mm |
View product details
02

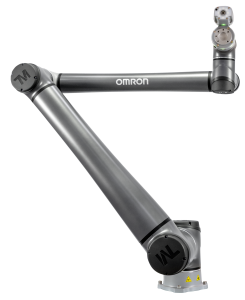

OMRON TM6S
Use one cobot to reach more of the line. With its long reach, the TM6S handles small to mid‑size parts with accurate, repeatable motion and certified collaborative safety for assembly, testing, light tending, and packaging. From a single mount, you cover multiple machines, automate more steps, and keep operations consistent shift after shift.
Maximum payload |
6 kg |
Maximum reach |
1800 mm |
Repeatability |
± 0.1 mm |
View product details
03

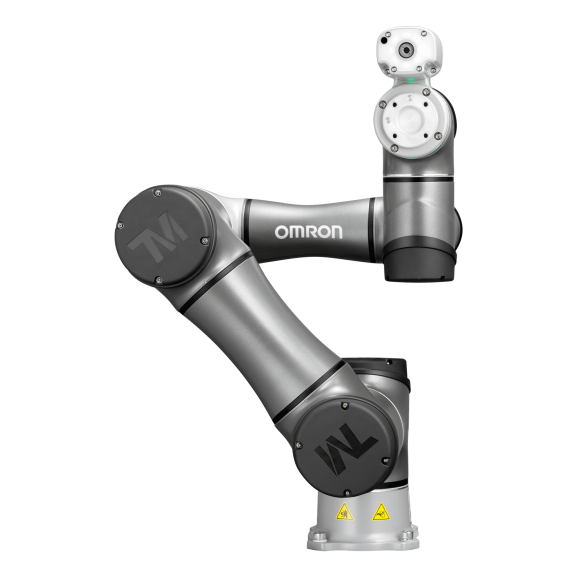

OMRON TM7S
Bring collaborative automation to compact workcells and benchtop processes. The TM7S pairs certified collaborative safety, a small footprint, and precise motion control for small-part pick-and-place, testing, and light assembly—letting you automate tasks in tight spaces, react faster to product changes, and keep short production runs efficient.
Maximum payload |
7 kg |
Maximum reach |
700 mm |
Repeatability |
±0.03 mm |
View product details
04

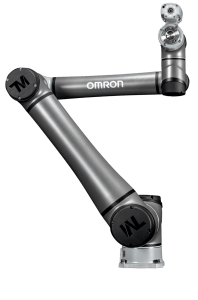

OMRON TM12S
Automate repetitive work around your machines and pallets. The TM12S combines certified collaborative safety, built‑in vision, and stable, precise handling of medium‑weight parts for machine tending, infeed and outfeed, and end‑of‑line stacking—helping you keep equipment loaded, maintain steady throughput, and cut manual strain across your lines.
Maximum payload |
12 kg |
Maximum reach |
1300 mm |
Repeatability |
±0.03 mm |
View product details
05

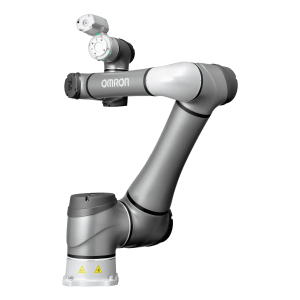

OMRON TM14S
Raise quality and consistency in packaging, machine tending, and small‑parts handling. The TM14S pairs certified collaborative safety, a cleanroom‑ready design, and integrated vision to handle repetitive work in food, beverage, electronics, and other manufacturing—delivering consistent results in inspection, loading and unloading, and precise pick‑and‑place.
Maximum payload |
14 kg |
Maximum reach |
1100 mm |
Repeatability |
±0.03 mm |
View product details
06

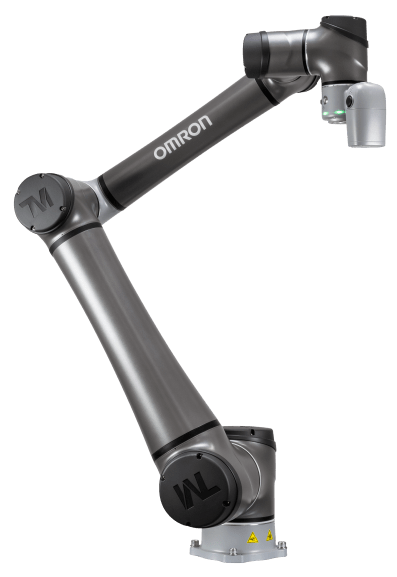

OMRON TM20S
Power up heavier workflows in compact cells. The TM20S is a smart fit for mixed applications, from case palletizing and machine tending on CNCs, molding and test stations to warehouse picking and cleanroom tasks. It delivers quick redeploys, flexible changeovers, and consistent placement—reducing bottlenecks and keeping your lines running smoothly.
Maximum payload |
20 kg |
Maximum reach |
1300 mm |
Repeatability |
± 0.05 mm |
View product details
07

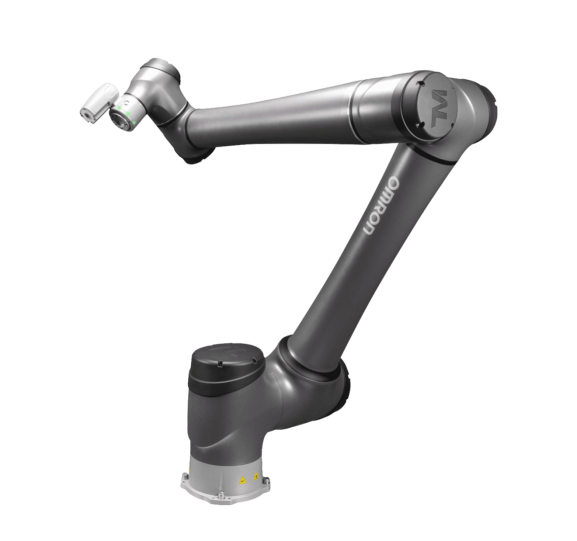

OMRON TM25S
Take the heavy lifting out of palletizing, machine tending, and line loading. With certified collaborative safety for cage‑free operation, long reach, and high‑payload performance, the TM25S easily moves bulky parts and heavy loads—freeing operators from manual stacking and keeping pallet flow consistent at the end of the line.
Maximum payload |
25 kg |
Maximum reach |
1902 mm |
Repeatability |
±0.05 mm |
View product details
08

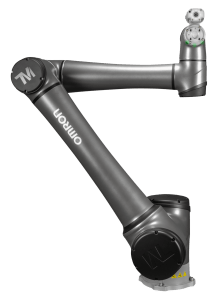

OMRON TM30S
Reach full pallet height in heavy‑duty end‑of‑line work without additional lifting equipment. The TM30S palletizes and depalletizes tall stacks on Euro and US pallets with certified collaborative safety, extended reach, and reliable heavy load handling, enabling compact palletizing cells, faster changeovers, and consistent material flow for intralogistics operations.
Maximum payload |
30 kg |
Maximum reach |
1702 mm |
Repeatability |
± 0.05 mm |
View product details
Comparison
Product
5 kg
900 mm
±0.03 mm
1.4 m/s
J1, J2, J3: 210°/s J4, J5: 225°/s J6: 450°/s
J1, J2, J4, J5, J6: ±360° J3: ±158°
Wall Table Ceiling
IP65 for Robot Arm IP54 for AC Control Box and Robot Stick ISO Cleanroom Class 3
TÜV-certified ISO 13849-1 ISO 10218-1 ISO/TS 15066 UL1740 CAN/CSA Z424-14 (R2019) SEMI S2 (opt.)
TMFlow (flowchart-based) TMScript (script-based) TMCraft (developer-based)
RS-232/RS-422/RS-485 Ethernet Modbus TCP/RTU PROFINET (opt.) EtherNet/IP (opt.)
6 kg
1800 mm
±0.1 mm
1.1 m/s
J1, J2: 130°/s J3: 210°/s J4, J5: 225°/s J6: 450°/s
J1, J2, J4, J5, J6: ±360° J3: ±166°
Wall Table Ceiling
IP65 for Robot Arm IP54 for AC Control Box and Robot Stick ISO Cleanroom Class 3
TÜV-certified ISO 13849-1 ISO 10218-1 ISO/TS 15066 UL1740 CAN/CSA Z424-14 (R2019) SEMI S2 (opt.)
TMFlow (flowchart-based) TMScript (script-based) TMCraft (developer-based)
RS-232/RS-422/RS-485 Ethernet Modbus TCP/RTU PROFINET (opt.) EtherNet/IP (opt.)
7 kg
700 mm
±0.03 mm
1.1 m/s
J1, J2, J3: 210°/s J4, J5: 225°/s J6: 450°/s
J1, J2, J4, J5, J6: ±360° J3: ±152°
Wall Table Ceiling
IP65 for Robot Arm IP54 for AC Control Box and Robot Stick ISO Cleanroom Class 3
TÜV-certified ISO 13849-1 ISO 10218-1 ISO/TS 15066 UL1740 CAN/CSA Z424-14 (R2019) SEMI S2 (opt.)
TMFlow (flowchart-based) TMScript (script-based) TMCraft (developer-based)
RS-232/RS-422/RS-485 Ethernet Modbus TCP/RTU PROFINET (opt.) EtherNet/IP (opt.)
12 kg
1300 mm
±0.03 mm
1.3 m/s
J1, J2: 130°/s J3: 210°/s J4, J5: 225°/s J6: 450°/s
J1, J2, J4, J5, J6: ±360° J3: ±162°
Wall Table Ceiling
IP65 for Robot Arm IP54 for AC Control Box and Robot Stick ISO Cleanroom Class 3
TÜV-certified ISO 13849-1 ISO 10218-1 ISO/TS 15066 UL1740 CAN/CSA Z424-14 (R2019) SEMI S2 (opt.)
TMFlow (flowchart-based) TMScript (script-based) TMCraft (developer-based)
RS-232/RS-422/RS-485 Ethernet Modbus TCP/RTU PROFINET (opt.) EtherNet/IP (opt.)
14 kg
1100 mm
±0.03 mm
1.1 m/s
J1, J2: 130°/s J3: 210°/s J4, J5: 225°/s J6: 450°/s
J1, J2, J4, J5, J6: ±360° J3: ±159°
Wall Table Ceiling
IP65 for Robot Arm IP54 for AC Control Box and Robot Stick ISO Cleanroom Class 3
TÜV-certified ISO 13849-1 ISO 10218-1 ISO/TS 15066 UL1740 CAN/CSA Z424-14 (R2019) SEMI S2 (opt.)
TMFlow (flowchart-based) TMScript (script-based) TMCraft (developer-based)
RS-232/RS-422/RS-485 Ethernet Modbus TCP/RTU PROFINET (opt.) EtherNet/IP (opt.)
20 kg
1300 mm
±0.05 mm
1.1 m/s
J1: 130°/s J2: 95°/s J3: 125°/s J4: 160°/s J5: 190°/s J6: 450°/s
J1, J2, J4, J5, J6: ±360° J3: ±162°
Wall Table Ceiling
IP65 for Robot Arm IP54 for AC Control Box and Robot Stick ISO Cleanroom Class 3
TÜV-certified ISO 13849-1 ISO 10218-1 ISO/TS 15066 UL1740 CAN/CSA Z424-14 (R2019) SEMI S2 (opt.)
TMFlow (flowchart-based) TMScript (script-based) TMCraft (developer-based)
RS-232/RS-422/RS-485 Ethernet Modbus TCP/RTU PROFINET (opt.) EtherNet/IP (opt.)
25 kg
1902 mm
±0.05 mm
2.1 m/s
J1, J2: 100°/s J3: 130°/s J4: 195°/s J5: 210°/s J6: 225°/s
J1, J2, J4, J5, J6: ±360° J3: ±166°
Wall Table Ceiling
IP65 for Robot Arm IP54 for AC Control Box and Robot Stick ISO Cleanroom Class 3
TÜV-certified ISO 13849-1 ISO 10218-1 ISO/TS 15066 UL1740 CAN/CSA Z424-14 (R2019)
TMFlow (flowchart-based) TMScript (script-based) TMCraft (developer-based)
RS-232/RS-422/RS-485 Ethernet Modbus TCP/RTU PROFINET (opt.) EtherNet/IP (opt.)
30 kg
1702 mm
±0.05 mm
2.1 m/s
J1, J2: 100°/s J3: 130°/s J4: 195°/s J5: 210°/s J6: 225°/s
J1, J2, J4, J5, J6: ±360° J3: ±170°
Wall Table Ceiling
IP65 for Robot Arm IP54 for AC Control Box and Robot Stick ISO Cleanroom Class 3
TÜV-certified ISO 13849-1 ISO 10218-1 ISO/TS 15066 UL1740 CAN/CSA Z424-14 (R2019)
TMFlow (flowchart-based) TMScript (script-based) TMCraft (developer-based)
RS-232/RS-422/RS-485 Ethernet Modbus TCP/RTU PROFINET (opt.) EtherNet/IP (opt.)
Maximum payload
Maximum reach
Repeatability
Average speed
Joint speed
Joint ranges
Mounting options
IP and cleanroom class
Certifications
Programming environment
Communication
|
|
||||||||
|---|---|---|---|---|---|---|---|---|
|
Maximum payload |
5 kg |
6 kg |
7 kg |
12 kg |
14 kg |
20 kg |
25 kg |
30 kg |
|
Maximum reach |
900 mm |
1800 mm |
700 mm |
1300 mm |
1100 mm |
1300 mm |
1902 mm |
1702 mm |
|
Repeatability |
±0.03 mm |
±0.1 mm |
±0.03 mm |
±0.03 mm |
±0.03 mm |
±0.05 mm |
±0.05 mm |
±0.05 mm |
|
Average speed |
1.4 m/s |
1.1 m/s |
1.1 m/s |
1.3 m/s |
1.1 m/s |
1.1 m/s |
2.1 m/s |
2.1 m/s |
|
Joint speed |
J1, J2, J3: 210°/s J4, J5: 225°/s J6: 450°/s |
J1, J2: 130°/s J3: 210°/s J4, J5: 225°/s J6: 450°/s |
J1, J2, J3: 210°/s J4, J5: 225°/s J6: 450°/s |
J1, J2: 130°/s J3: 210°/s J4, J5: 225°/s J6: 450°/s |
J1, J2: 130°/s J3: 210°/s J4, J5: 225°/s J6: 450°/s |
J1: 130°/s J2: 95°/s J3: 125°/s J4: 160°/s J5: 190°/s J6: 450°/s |
J1, J2: 100°/s J3: 130°/s J4: 195°/s J5: 210°/s J6: 225°/s |
J1, J2: 100°/s J3: 130°/s J4: 195°/s J5: 210°/s J6: 225°/s |
|
Joint ranges |
J1, J2, J4, J5, J6: ±360° J3: ±158° |
J1, J2, J4, J5, J6: ±360° J3: ±166° |
J1, J2, J4, J5, J6: ±360° J3: ±152° |
J1, J2, J4, J5, J6: ±360° J3: ±162° |
J1, J2, J4, J5, J6: ±360° J3: ±159° |
J1, J2, J4, J5, J6: ±360° J3: ±162° |
J1, J2, J4, J5, J6: ±360° J3: ±166° |
J1, J2, J4, J5, J6: ±360° J3: ±170° |
|
Mounting options |
Wall Table Ceiling |
Wall Table Ceiling |
Wall Table Ceiling |
Wall Table Ceiling |
Wall Table Ceiling |
Wall Table Ceiling |
Wall Table Ceiling |
Wall Table Ceiling |
|
IP and cleanroom class |
IP65 for Robot Arm IP54 for AC Control Box and Robot Stick ISO Cleanroom Class 3 |
IP65 for Robot Arm IP54 for AC Control Box and Robot Stick ISO Cleanroom Class 3 |
IP65 for Robot Arm IP54 for AC Control Box and Robot Stick ISO Cleanroom Class 3 |
IP65 for Robot Arm IP54 for AC Control Box and Robot Stick ISO Cleanroom Class 3 |
IP65 for Robot Arm IP54 for AC Control Box and Robot Stick ISO Cleanroom Class 3 |
IP65 for Robot Arm IP54 for AC Control Box and Robot Stick ISO Cleanroom Class 3 |
IP65 for Robot Arm IP54 for AC Control Box and Robot Stick ISO Cleanroom Class 3 |
IP65 for Robot Arm IP54 for AC Control Box and Robot Stick ISO Cleanroom Class 3 |
|
Certifications |
TÜV-certified ISO 13849-1 ISO 10218-1 ISO/TS 15066 UL1740 CAN/CSA Z424-14 (R2019) SEMI S2 (opt.) |
TÜV-certified ISO 13849-1 ISO 10218-1 ISO/TS 15066 UL1740 CAN/CSA Z424-14 (R2019) SEMI S2 (opt.) |
TÜV-certified ISO 13849-1 ISO 10218-1 ISO/TS 15066 UL1740 CAN/CSA Z424-14 (R2019) SEMI S2 (opt.) |
TÜV-certified ISO 13849-1 ISO 10218-1 ISO/TS 15066 UL1740 CAN/CSA Z424-14 (R2019) SEMI S2 (opt.) |
TÜV-certified ISO 13849-1 ISO 10218-1 ISO/TS 15066 UL1740 CAN/CSA Z424-14 (R2019) SEMI S2 (opt.) |
TÜV-certified ISO 13849-1 ISO 10218-1 ISO/TS 15066 UL1740 CAN/CSA Z424-14 (R2019) SEMI S2 (opt.) |
TÜV-certified ISO 13849-1 ISO 10218-1 ISO/TS 15066 UL1740 CAN/CSA Z424-14 (R2019) |
TÜV-certified ISO 13849-1 ISO 10218-1 ISO/TS 15066 UL1740 CAN/CSA Z424-14 (R2019) |
|
Programming environment |
TMFlow (flowchart-based) TMScript (script-based) TMCraft (developer-based) |
TMFlow (flowchart-based) TMScript (script-based) TMCraft (developer-based) |
TMFlow (flowchart-based) TMScript (script-based) TMCraft (developer-based) |
TMFlow (flowchart-based) TMScript (script-based) TMCraft (developer-based) |
TMFlow (flowchart-based) TMScript (script-based) TMCraft (developer-based) |
TMFlow (flowchart-based) TMScript (script-based) TMCraft (developer-based) |
TMFlow (flowchart-based) TMScript (script-based) TMCraft (developer-based) |
TMFlow (flowchart-based) TMScript (script-based) TMCraft (developer-based) |
|
Communication |
RS-232/RS-422/RS-485 Ethernet Modbus TCP/RTU PROFINET (opt.) EtherNet/IP (opt.) |
RS-232/RS-422/RS-485 Ethernet Modbus TCP/RTU PROFINET (opt.) EtherNet/IP (opt.) |
RS-232/RS-422/RS-485 Ethernet Modbus TCP/RTU PROFINET (opt.) EtherNet/IP (opt.) |
RS-232/RS-422/RS-485 Ethernet Modbus TCP/RTU PROFINET (opt.) EtherNet/IP (opt.) |
RS-232/RS-422/RS-485 Ethernet Modbus TCP/RTU PROFINET (opt.) EtherNet/IP (opt.) |
RS-232/RS-422/RS-485 Ethernet Modbus TCP/RTU PROFINET (opt.) EtherNet/IP (opt.) |
RS-232/RS-422/RS-485 Ethernet Modbus TCP/RTU PROFINET (opt.) EtherNet/IP (opt.) |
RS-232/RS-422/RS-485 Ethernet Modbus TCP/RTU PROFINET (opt.) EtherNet/IP (opt.) |
Start optimizing your production today
Have questions? Let’s chat.
APPLICATIONS
Engineered for your toughest tasks
Built for safe collaboration on and around your lines, the OMRON TM S Series handles your most demanding work with precise, reliable motion. Fast deployment and compact layouts help you adapt quickly while keeping output consistent.
See all applications

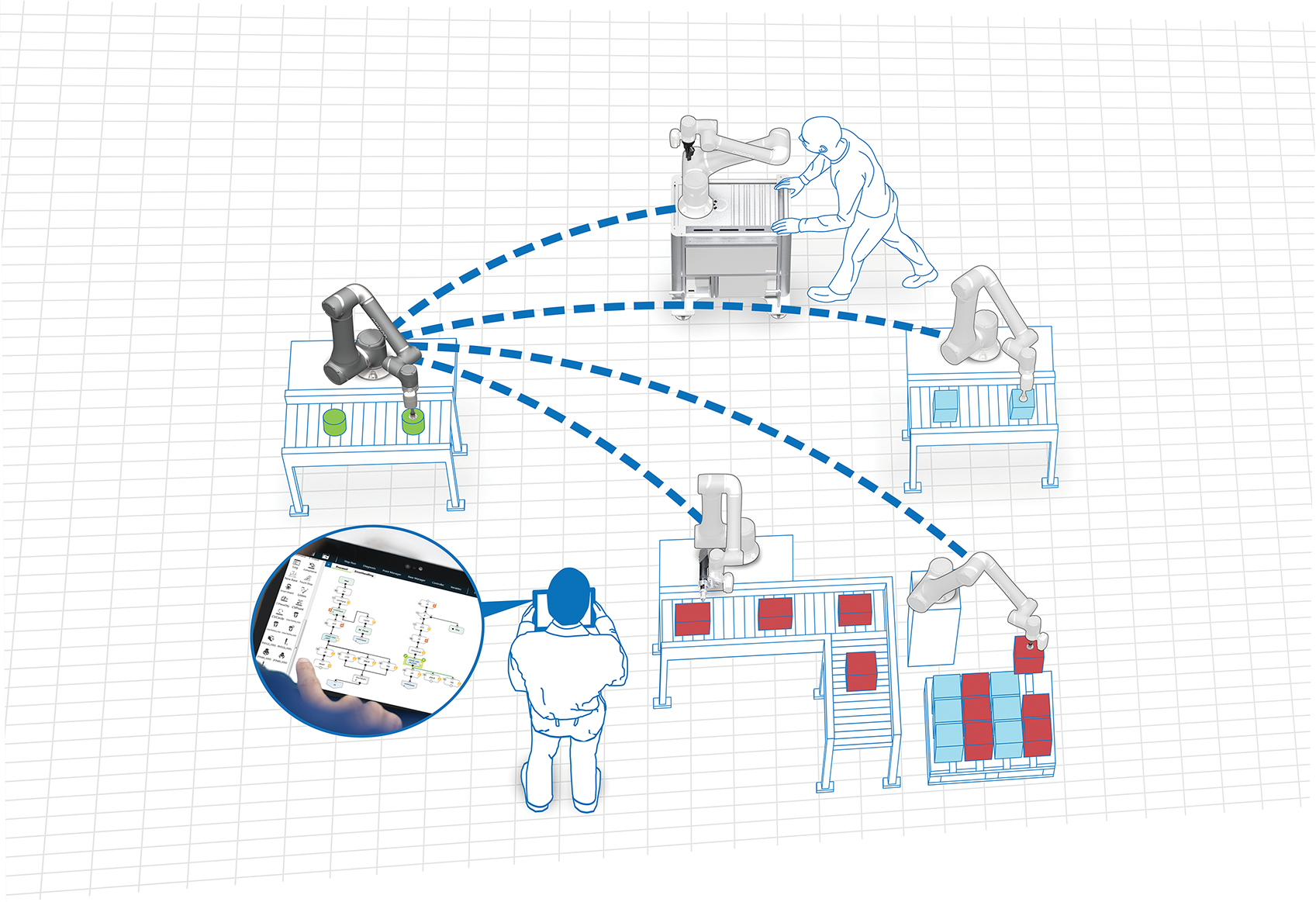

SOFTWARE
Build faster, run safer, scale smarter
With TMflow, you set up and change cobot tasks quickly using drag‑and‑drop, safe offline testing, and remote adjustments—helping you launch sooner and maintain consistent output.
Learn More
End-to-end automation
Discover OMRON’s entire automation portfolio—safety, vision, control, and robotics—designed to work as one. Program, synchronize, and simulate on a single platform for faster deployment, seamless scaling, and efficient operations.
